Brand  Ex-Pro

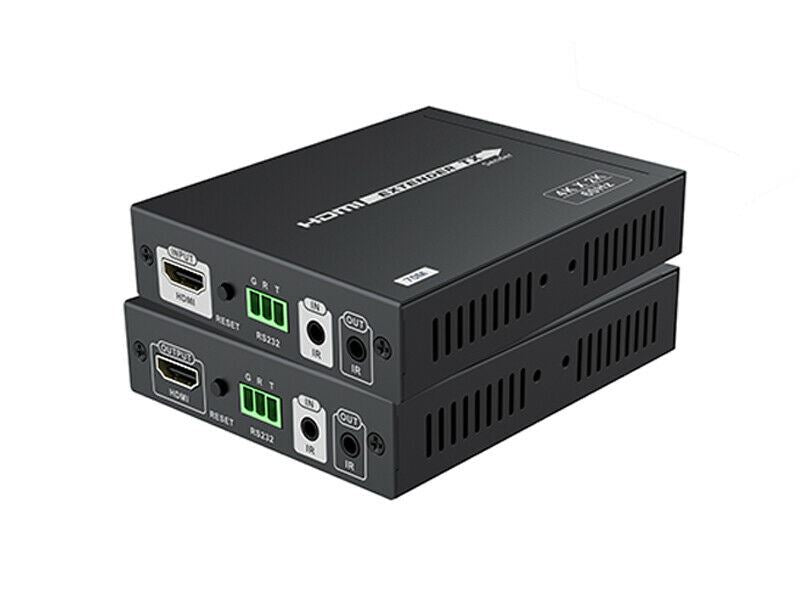

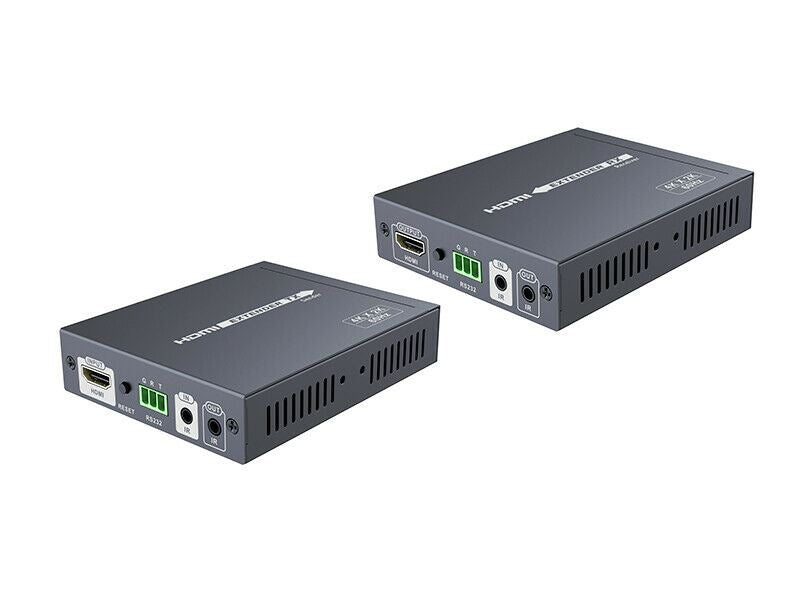

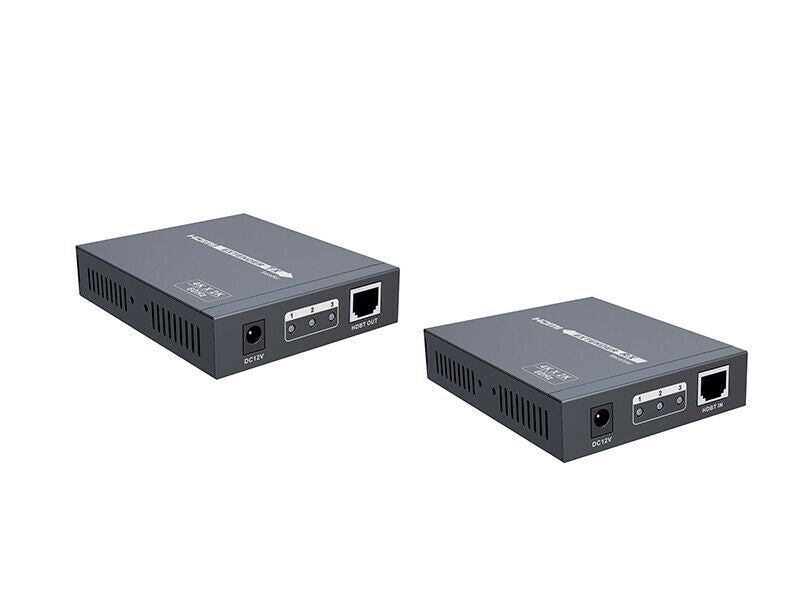

Ex-Pro70m AV-Pro HDBaseT Extender V2.0 HDMI Over Single CAT6/6A/7 with IR Control. Using the very latest HDMI technology can extend a high resolution signal for 70m to a display device connected via CAT6/6A/7 [UTP/STP] single cable [IEEE-568B]. Zero transmission loss technology using support long transmission with clear output, video is displayed clearly without loss at the receiver side. This units supports one to one - Sender to Receiver. Supports 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K 24/25/30/60/Hz. Extends up to 70m at 4Kx2K@60Hz. Supports uncompressed HDMI, CEC, Audio (LPCM). HDCP 2.2 Supported. HDMI 2.0 Latest version and all prior versions Supported. Built-in IR Extender function. Easily extends HDTV & UHD (With protected content) Sources with an extremely low profile design. Extend output from SkyQ, SkyHD, Virgin V6, DVD, Blu-ray, PS3, PS4, Xbox, PC and any other HD Devices, simple and easy - plug and play. We recommend using quality cables between RX/TX for best performance, it is important to ensure your cables when using UHD are V2.0 compatible [Recommended less than 5m AWG24].

Specifications

Supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K2K.
Supports CAT6/6A/7
V2.0 HDMI
HDCP V2.2
Supports POE Power Over Ethernet - Power AC only required at TX Sender side.
SupportS bi-directional RS232 control.
Use Cat6 for best supported length and performance.
Units 109.49 x 87.0 x 23.4mm
What's in the Box

1 x Receiver, 1 x Sender, 2 x Infr-red IR Tras/Send, 1 x UK Mains Supply [Supports POE only required at TX Sender]

Ex-Pro70m AV-Pro HDBaseT Extender V2.0 HDMI Over Single CAT6/6A/7 with IR Control. Using the very latest HDMI technology can extend a high resolution signal for 70m to a display device connected via CAT6/6A/7 [UTP/STP] single cable [IEEE-568B]. Zero transmission loss technology using support long transmission with clear output, video is displayed clearly without loss at the receiver side.

Supports 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K 24/25/30/60/Hz. Extends up to 70m at 4Kx2K@60Hz.

Supports uncompressed HDMI, Audio (LPCM). HDCP 2.2 Supported. HDMI 2.0 Latest version and all prior versions Supported. Built-in IR Extender function. Easily extends HDTV & UHD (With protected content) Sources with an extremely low profile design. Extend output from SkyQ, SkyHD, Virgin V6, DVD, Blu-ray, PS3, PS4, Xbox, PC and any other HD Devices, simple and easy - plug and play.

HDBaseT Technology, Supports CAT6/6A/7, V2.0 HDMI, HDCP V2.2, Use Cat6 for best supported length and performance. Supports POE Power Over Ethernet - Power AC only required at TX Sender side, SupportS bi-directional RS232 control.

Sender and Receiver size :- 109.49(L)x87.0(W)x23.4(H)mm. 2 Year Ex-Pro Manufacture Defect UK Warranty & UK Customer support, RoHS compliant, FCC and CE approved.

Product Dimensions
