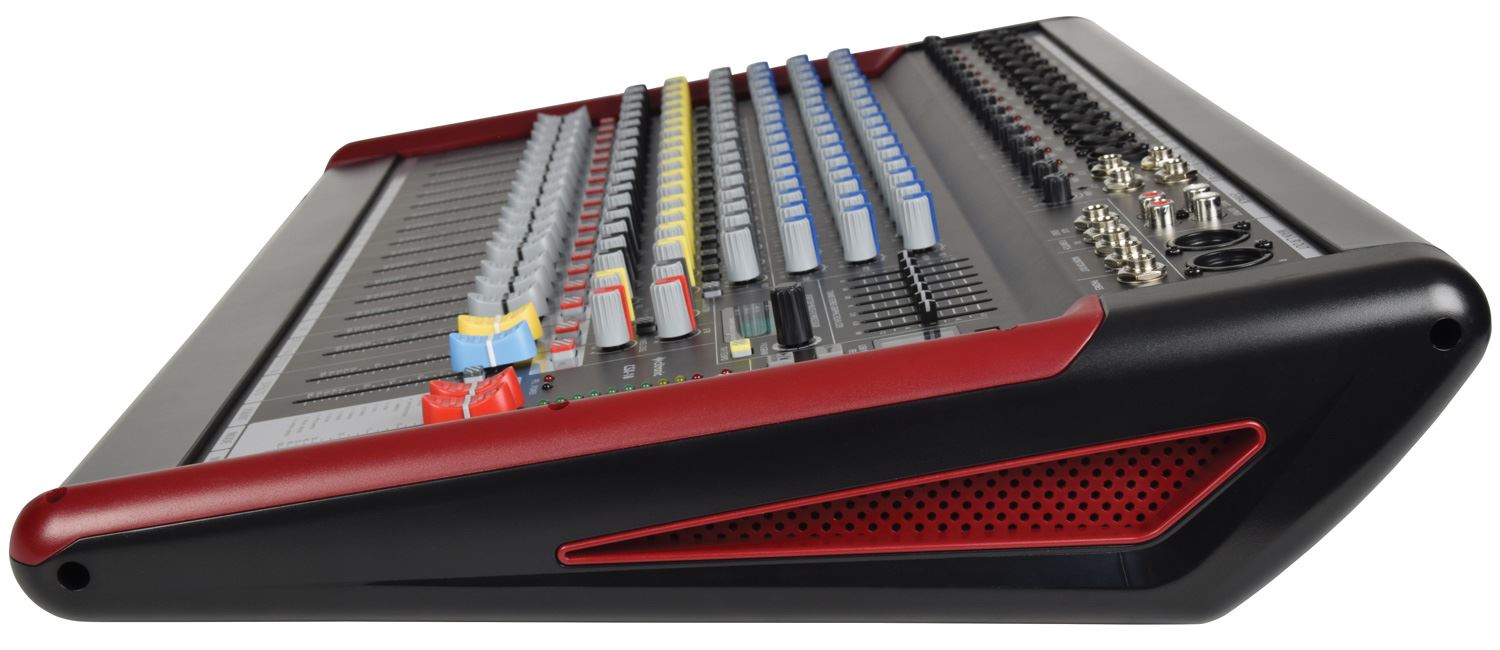

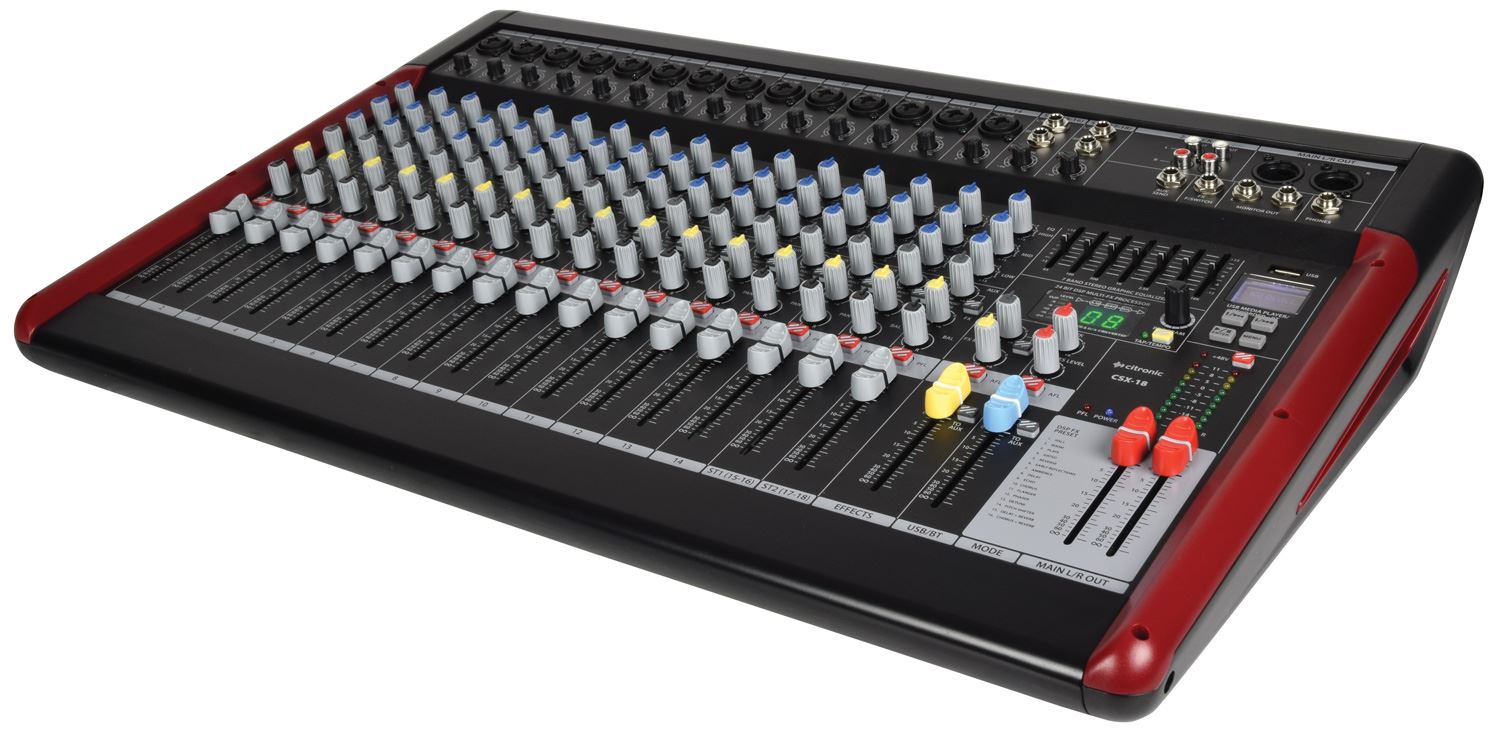

CSX-18 Series Live Mixing Console

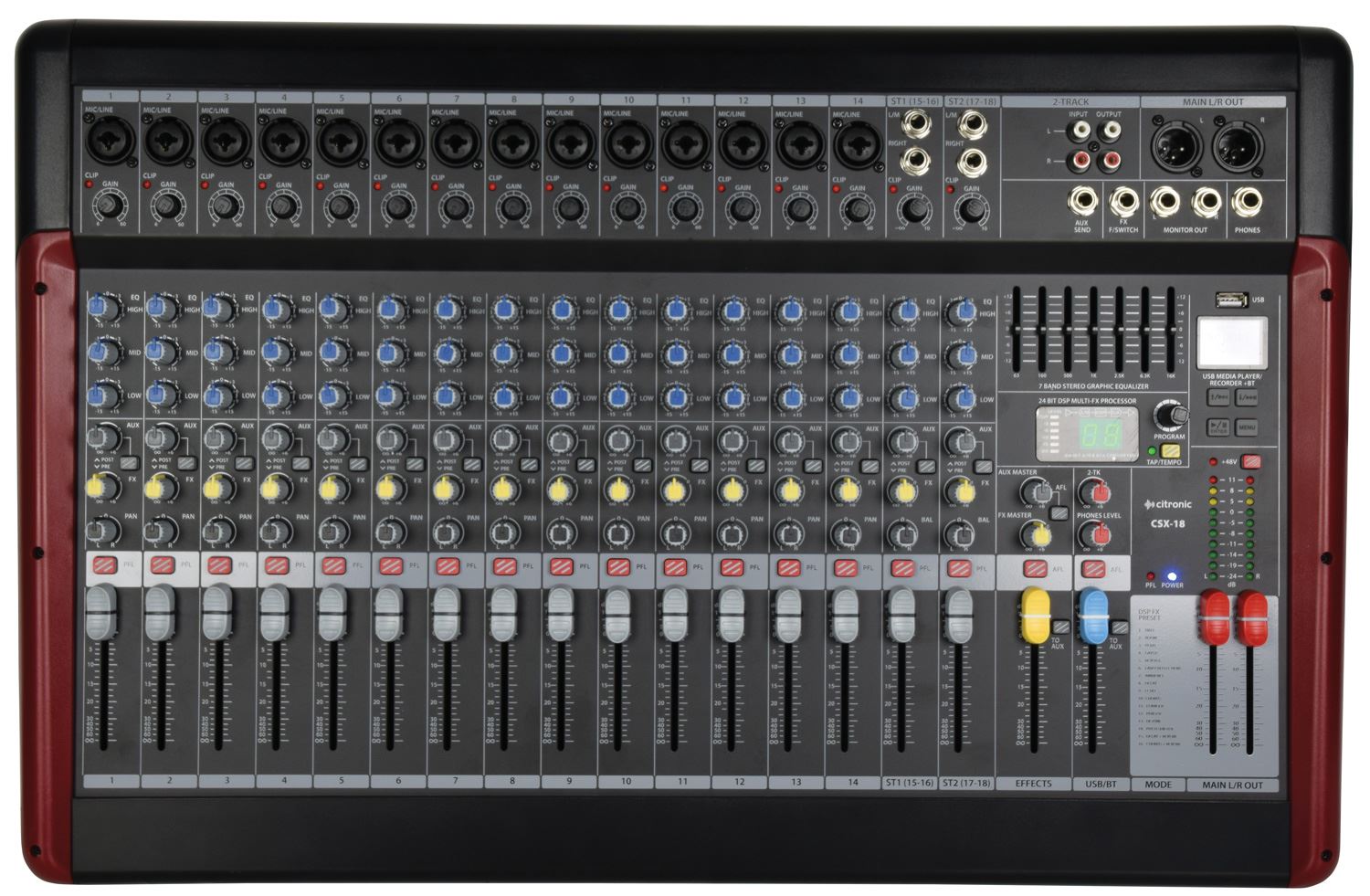

Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes. Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring. An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances. B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback. Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs. A 2-track RCA line input has a level control for mixing in a playback source. 2-track RCA output can be connected on to recording equipment or as an additional output feed if required. Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.

Details

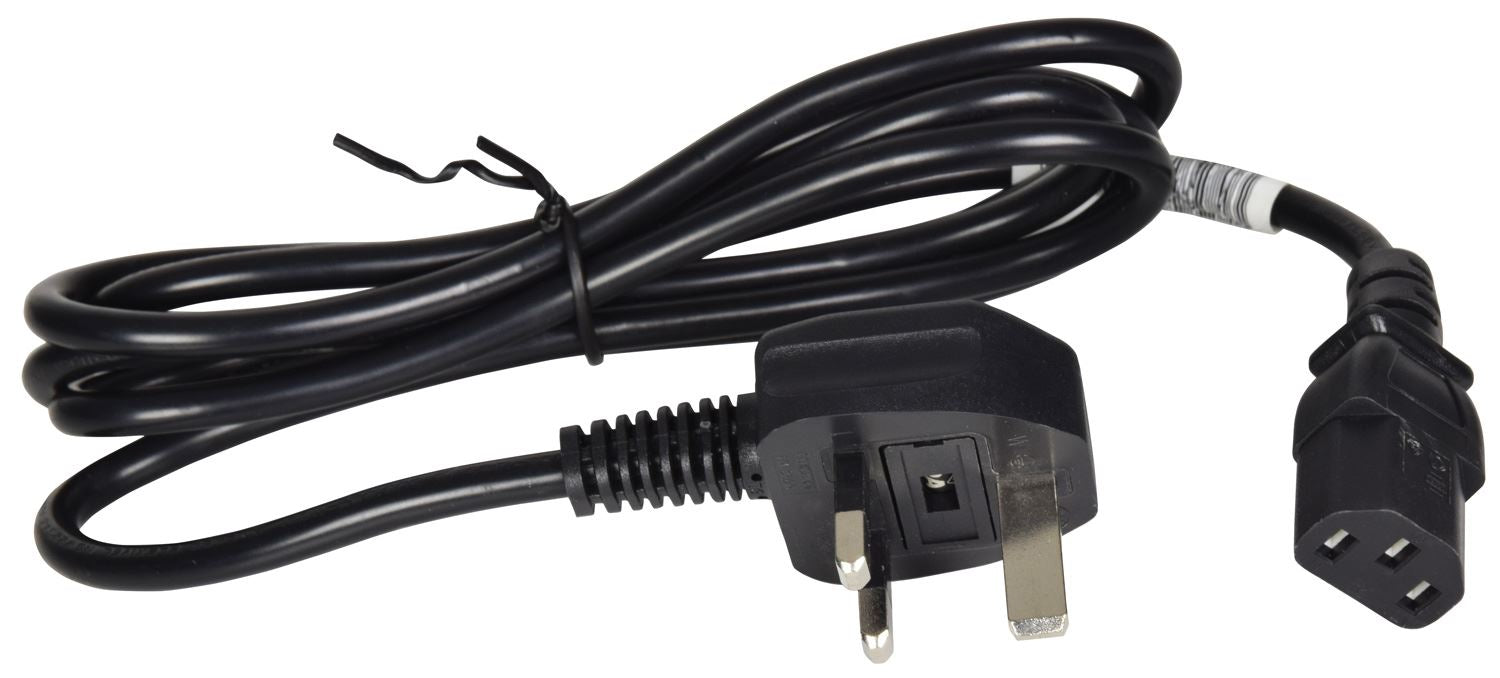

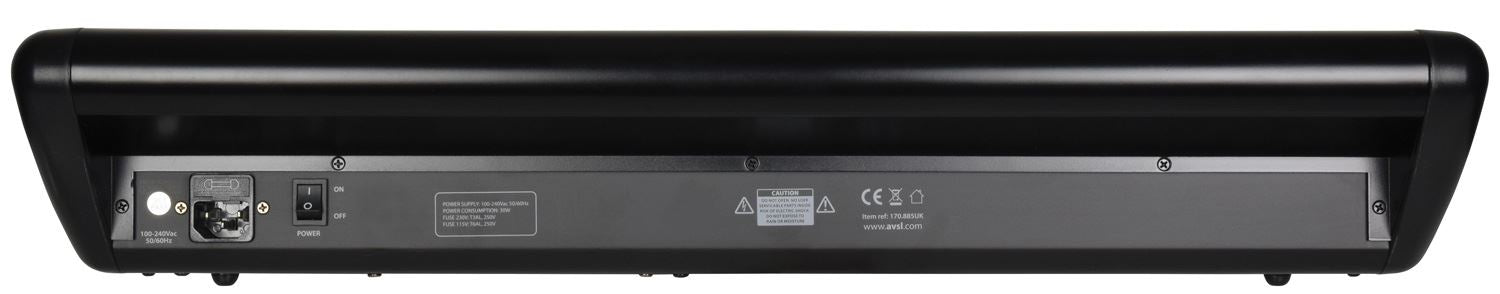

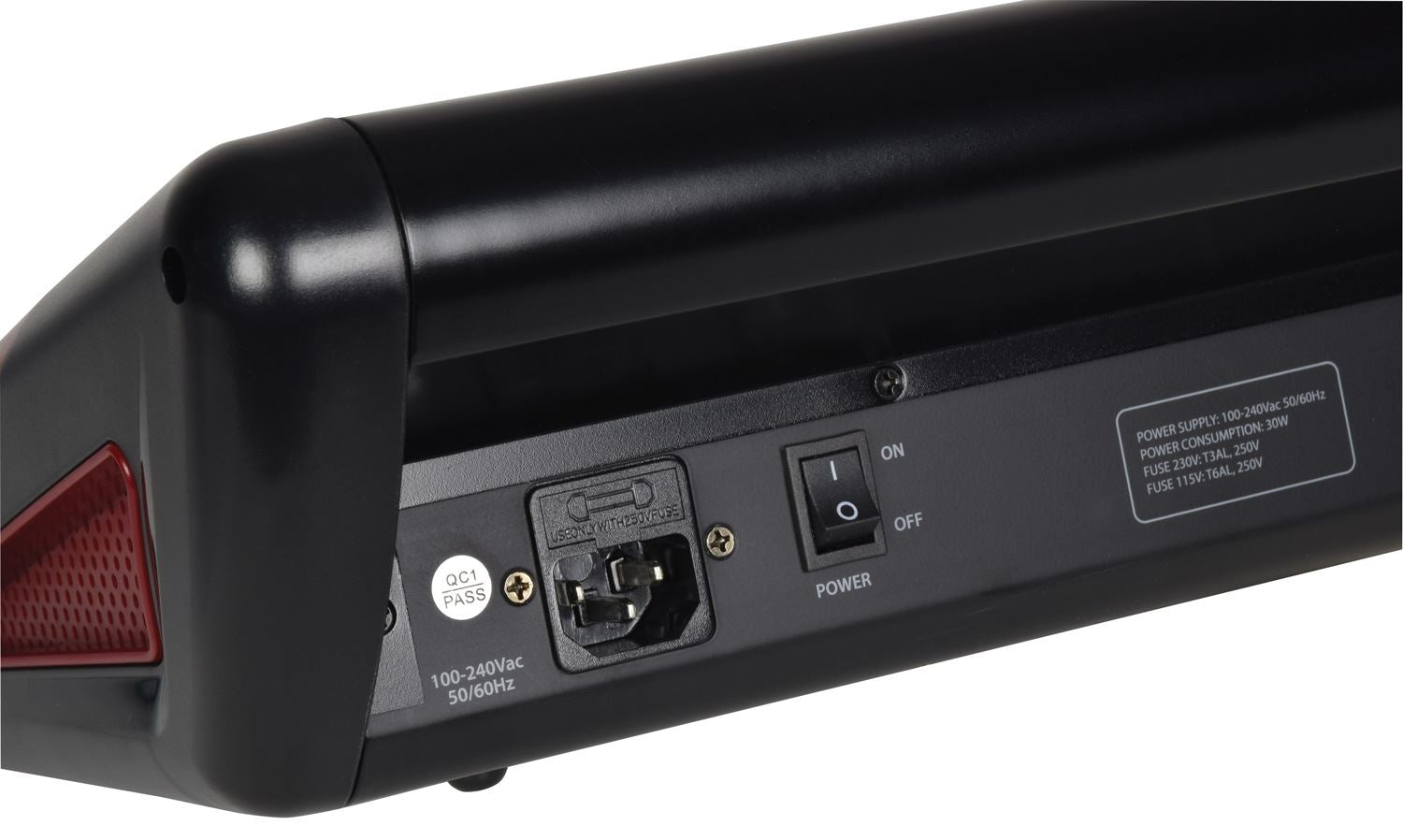

Power supply 100-240Vac, 50/60Hz (IEC)
Fuse T3AL @ 230V / T6AL @ 115V
Power consumption max. 30W
EQ master bands 63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
EQ: high 12kHz ±15dB (shelving)
EQ: mid 2.5kHz ±15dB (band pass)
EQ: low 80Hz ±15dB (shelving)

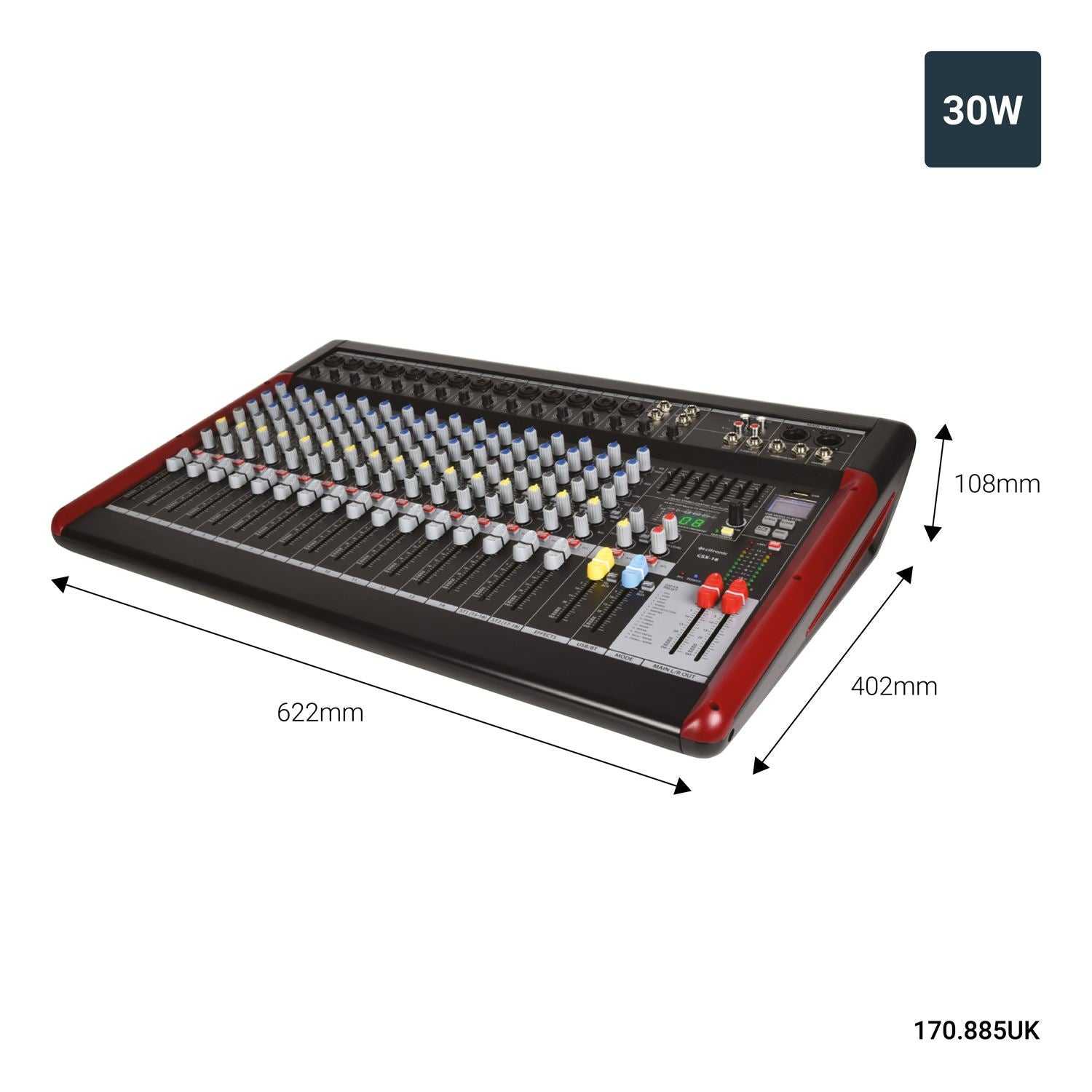

Dimensions 622 x 402 x 108mm
Weight 6.3kg
Channel crosstalk >82dB
Input level +24dBu (mic/line), +20dBu (stereo line) max.
Output level +26dBu (XLR), +20dBu (TRS jack) max.
Frequency response 20Hz - 30kHz (-0.5dB)
CMRR >75dB (Mic @ 1kHz)
THD +N
