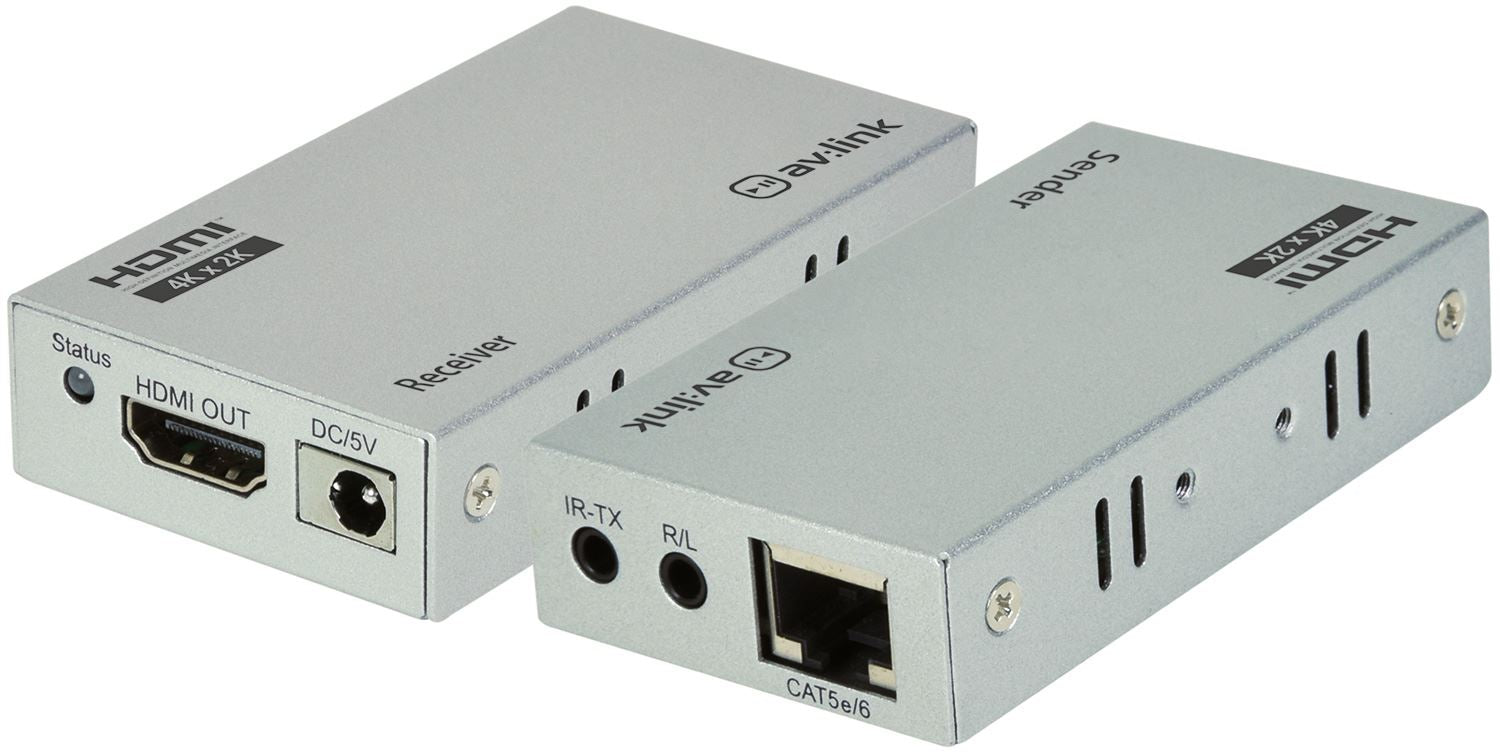

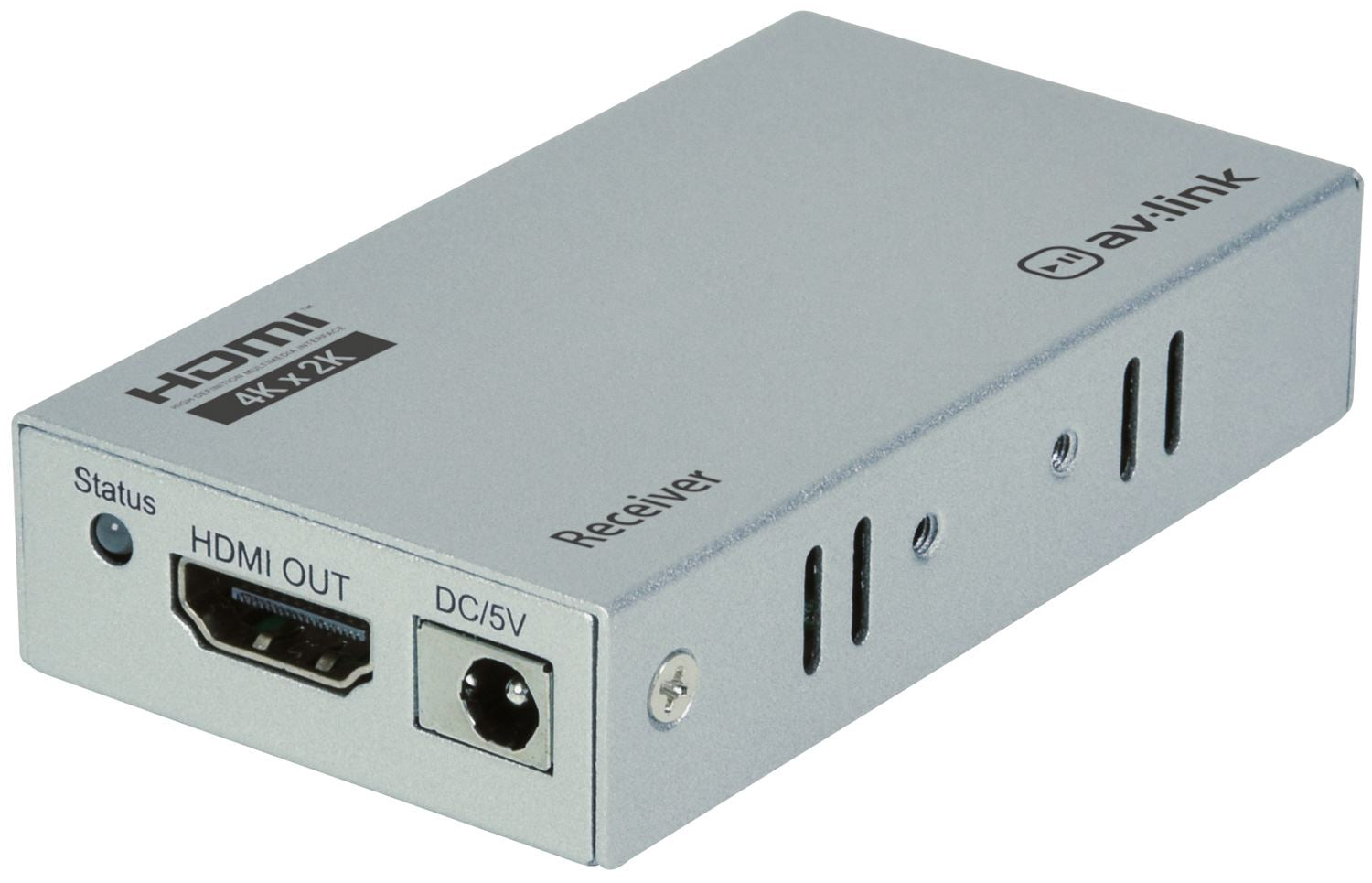

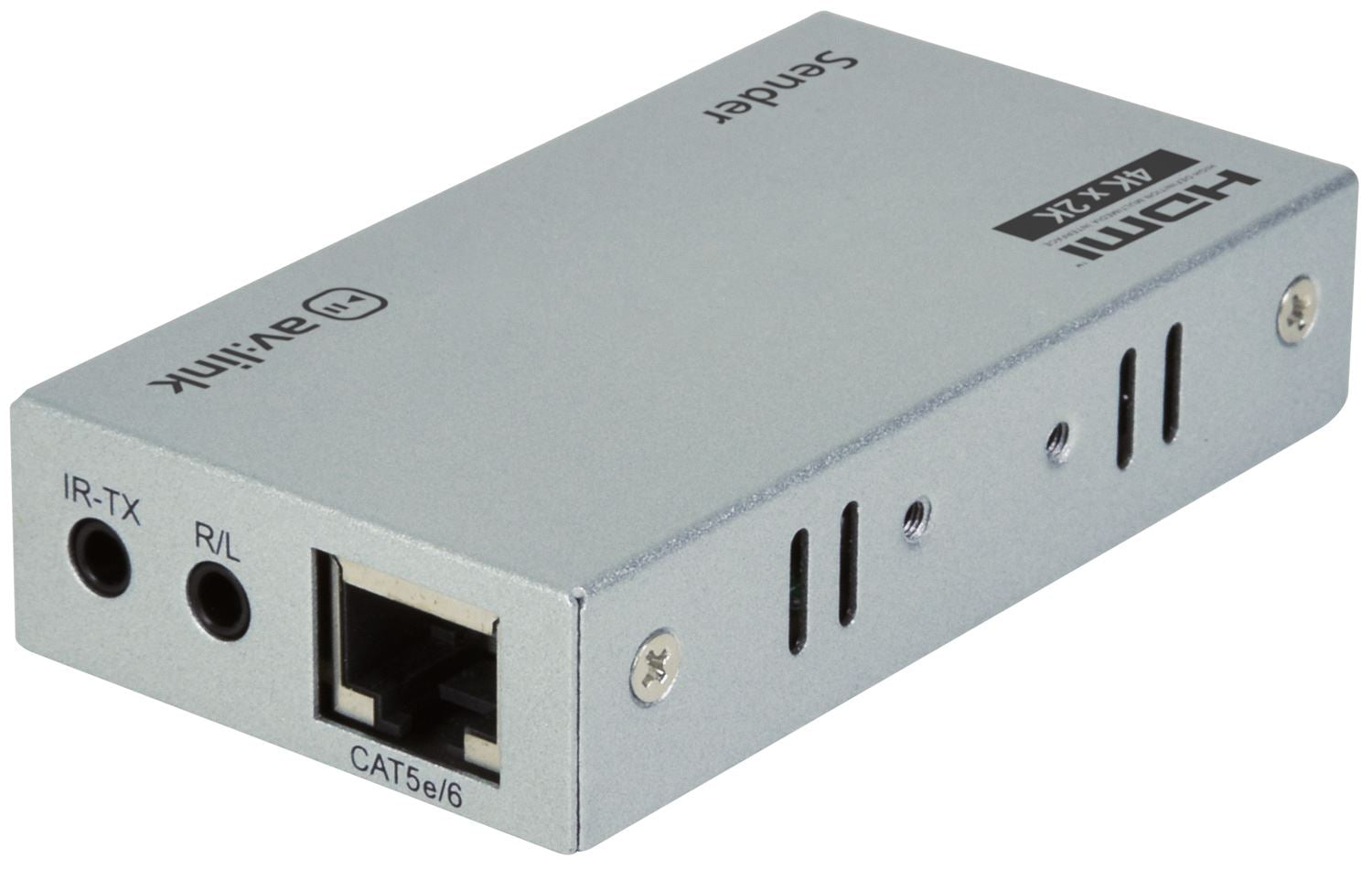

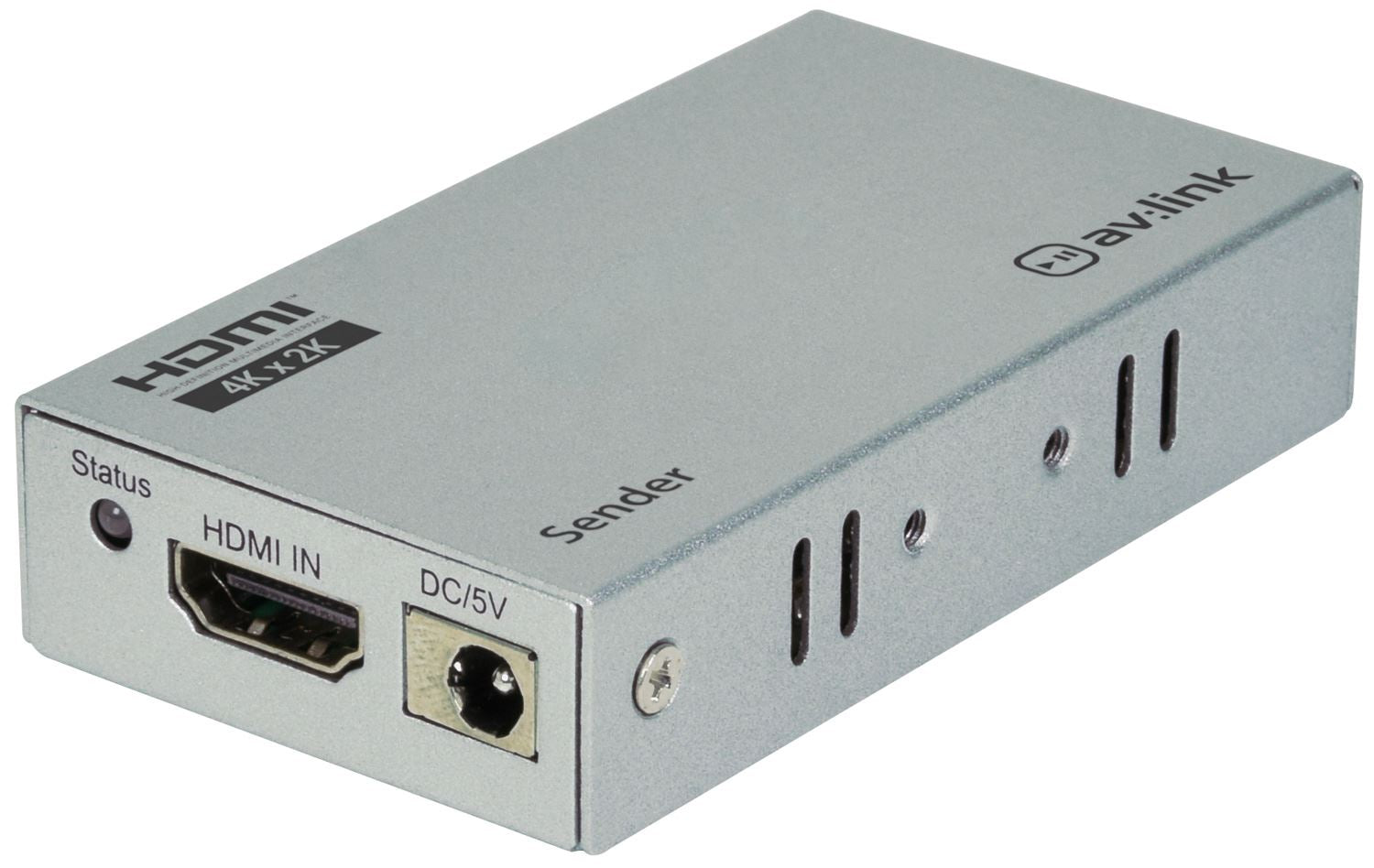

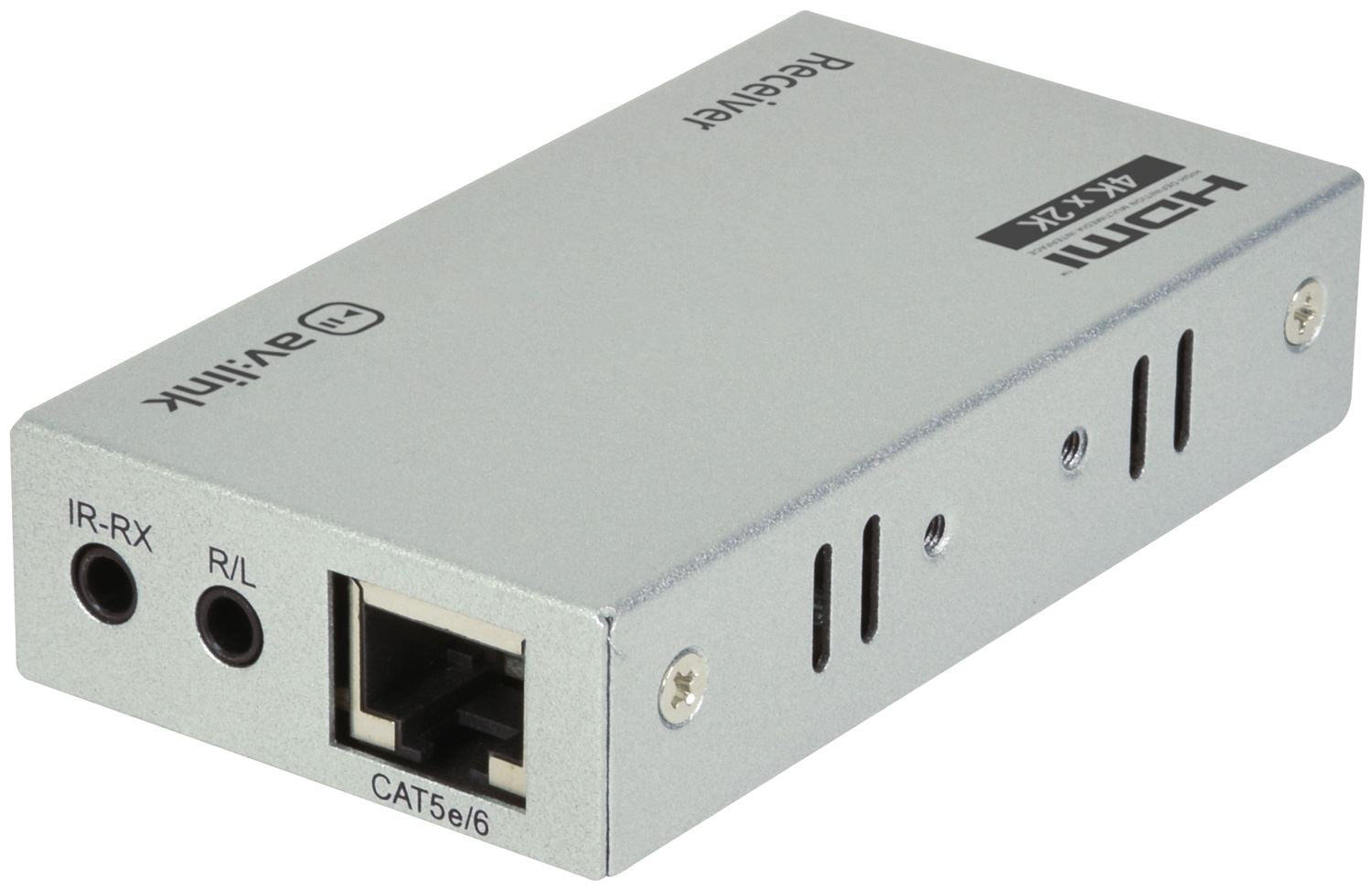

100m Range 4K HDMI Extender Over Ethernet Kit

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs but without reducing your picture quality. The built in IR function enables simple control of transmission devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers using a 3.5mm audio cable (not supplied).

Details

Easy transmission of 4K and FHD signals up to 100m using a single Ethernet cable
Simple plug and play connection and installation

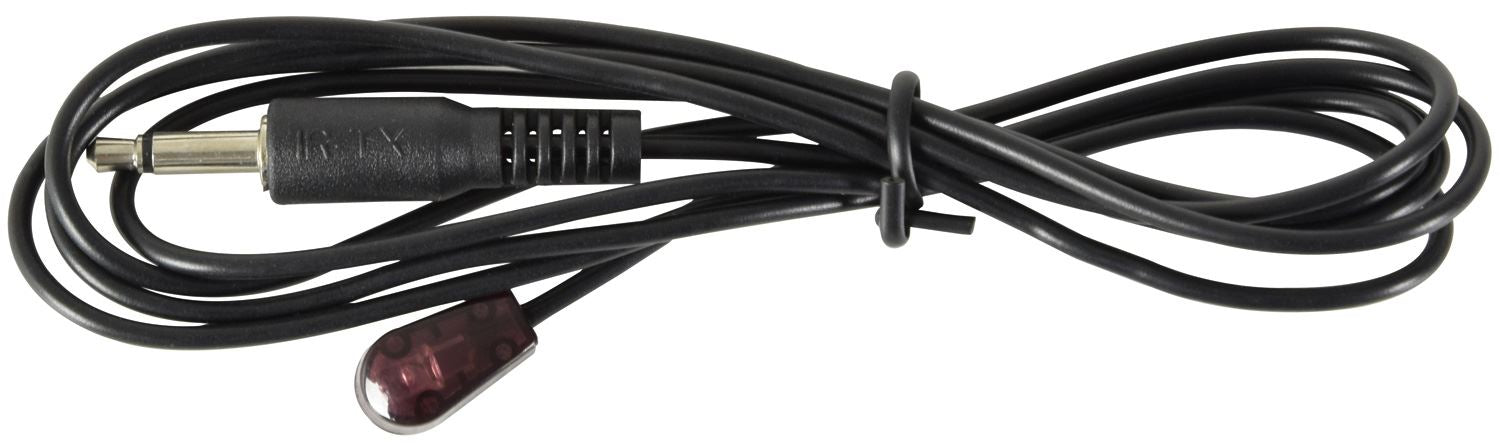

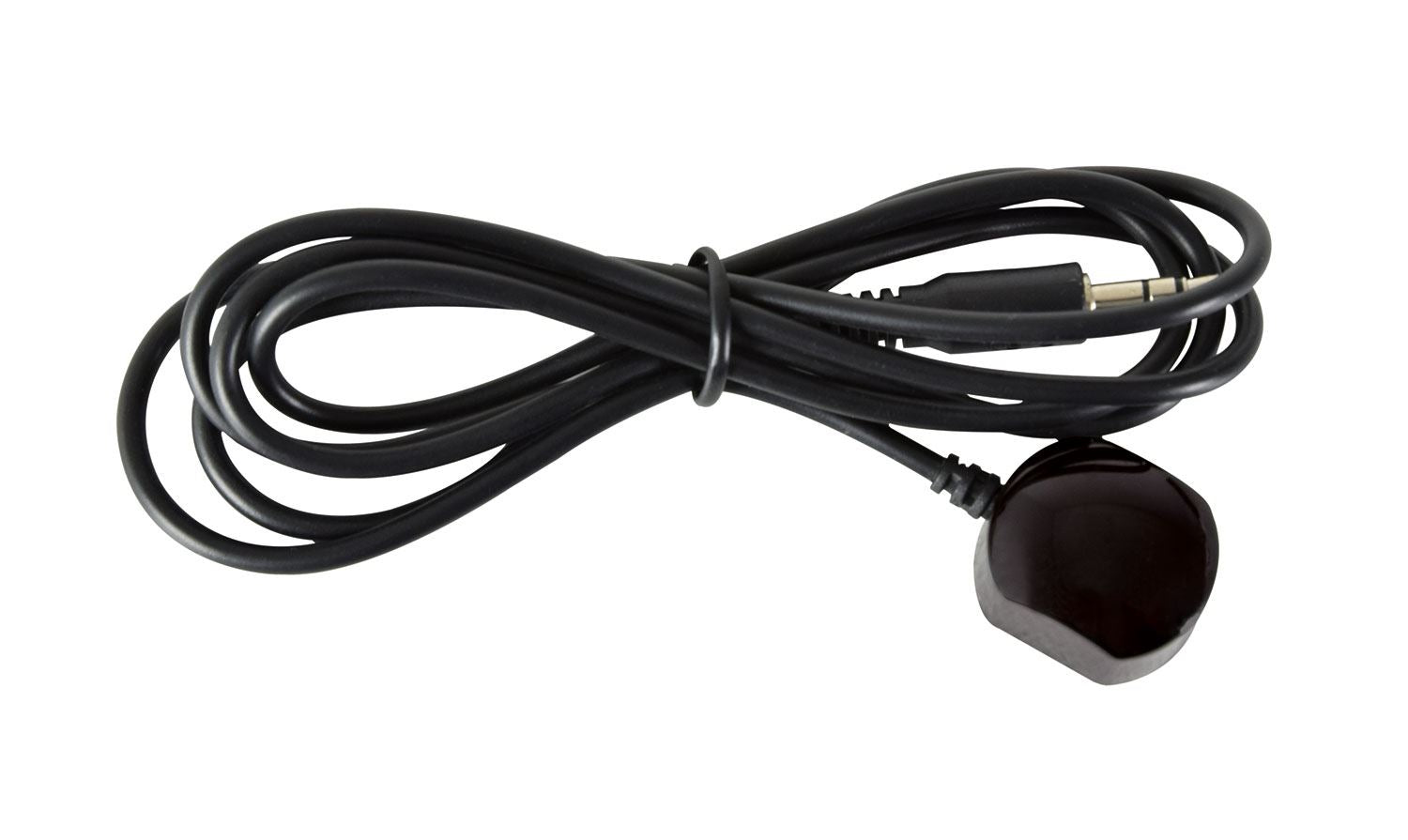

Built in IR function enables control of transmission devices remotely
Audio extraction function for connection to speakers and amplifiers
Gold plated HDMI connectors for optimum signal transfer
Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
Supplied with fixing brackets for rack mounting
Requires Cat5e/6 STP/FTP cable (not supplied)
HDCP2.2 Compliant

Specifications

HDMI version 1.4a
Max. range 100m
Video format Up to 3840 x 2160 @ 30Hz
Audio format Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max. bandwidth 340MHz
Max. baud rate 3x3.4Gbps
Max. working current 350mA (TX) and 200mA (RX)
Max. cable length HDMI (input & output) ≤15m AWG26 standard cable
Power supply 5Vdc, 1000mA
Dimensions 82x45x18mm (each unit)
Weight 120g (each unit)
