Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.
- Up to 12 outputs from 1 or 2 inputs
- Individual volume control for each output
- Input peak LEDs
SPECIFICATION:
* Power supply 115/230Vac, 50/60Hz (IEC)
* Inputs A & B, (6.3mm jack)
* Outputs 1 - 6 & 7 - 12 (6.3mm jack)
* Input impedance 20k Ohms
* Output impedance 220 Ohms
* Frequency response 20Hz - 20kHz, +0/-1dB
* Signal to noise ratio >95dB
* THD <0.008%
* Dimensions 483 x 44 x 170mm
* Weight 2.0kg
Skip to product information
Description
Product Information
Part Number 953.022UK
Packaging Gift Box
Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.
- Up to 12 outputs from 1 or 2 inputs
- Individual volume control for each output
- Input peak LEDs
SPECIFICATION:
* Power supply 115/230Vac, 50/60Hz (IEC)
* Inputs A & B, (6.3mm jack)
* Outputs 1 - 6 & 7 - 12 (6.3mm jack)
* Input impedance 20k Ohms
* Output impedance 220 Ohms
* Frequency response 20Hz - 20kHz, +0/-1dB
* Signal to noise ratio >95dB
* THD <0.008%
* Dimensions 483 x 44 x 170mm
* Weight 2.0kg
- Up to 12 outputs from 1 or 2 inputs
- Individual volume control for each output
- Input peak LEDs
SPECIFICATION:
* Power supply 115/230Vac, 50/60Hz (IEC)
* Inputs A & B, (6.3mm jack)
* Outputs 1 - 6 & 7 - 12 (6.3mm jack)
* Input impedance 20k Ohms
* Output impedance 220 Ohms
* Frequency response 20Hz - 20kHz, +0/-1dB
* Signal to noise ratio >95dB
* THD <0.008%
* Dimensions 483 x 44 x 170mm
* Weight 2.0kg
Part Number 953.022UK
Packaging Gift Box

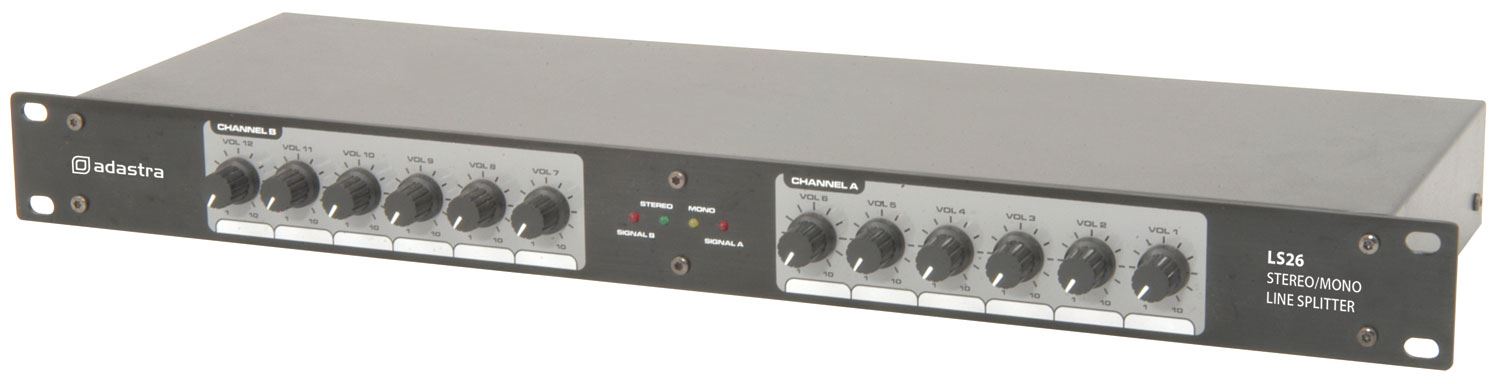

Adastra LS26 Line Splitter 1:12 / 2:6 Input / Outputs
Regular price
£106.82
Sold out
