Eagle 12-Way IEC (C13) Horizontal Socket 19 Inch PDU to C14 Plug

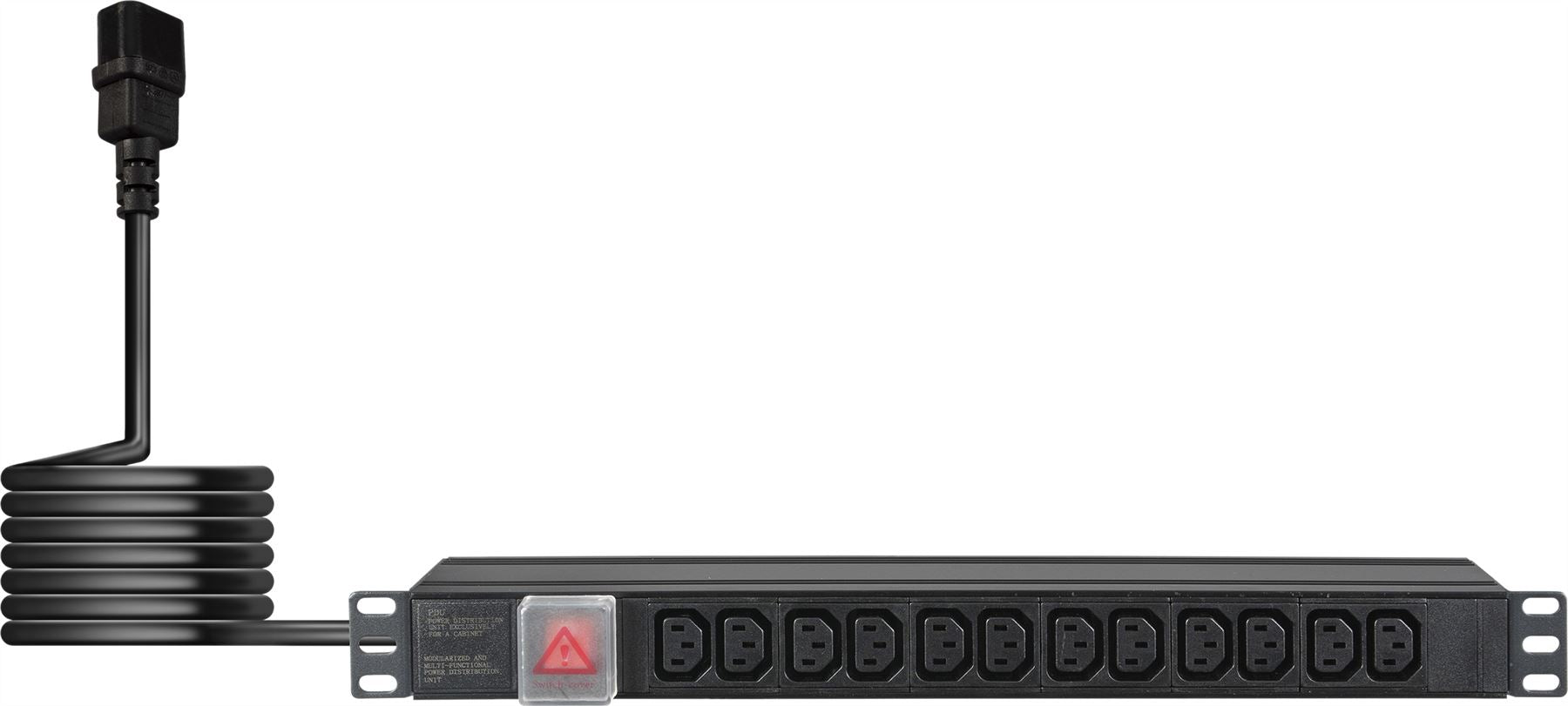

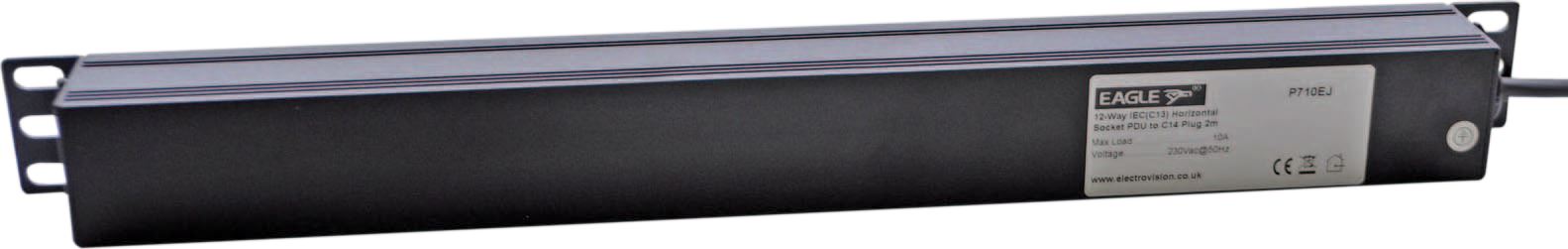

The Eagle 12-Way C13 IEC Horizontal PDU features Twelve (12) IEC Socket outlets to a C14 plug, 1U high design and an illuminated power switch with protection cover. The product is designed for use with most 19 Inch Network cabinets. Designed for Indoor use only.

Details

Surge Protected
Gross Weight (kg) 0.945
Outer box quantity 10
Packaged dimensions (HxWxL mm) 56x555x95
Transport dimensions (mm) 555x56x95
Packaged Depth (cm) 5.6
Number of Outputs 12
Net weight (kg) 0.865
Plastic weight (kg) 0.01
Paper weight (kg) 0.07
Outer box (HxWxL mm) 485x520x300
Gross Weight (Packaged) (kg) 0.945
CSA 1.5
Number of Cores 3
Item priced per 1
EAN Number (Outer Box) 5021196768173
Product Dimensions (mm) 44x482x55
Maximum Current (A) 10
Product EAN 5021196767282
Gross weight outer carton (kg) 10
Packaged Height (cm) 9.5
Supplier Ref. FD-IEC(C13)N1012WKPB19A
Lead Length (m) 2
Packaged Width (cm) 55.5
Display Footprint (mm) 56x555x95
Connector Type 12x C13 - 1x C14 Plug
Outer Box Height (cm) 48
Outer Box Width (cm) 52
Outer Box Length (cm) 30
Colour Black
