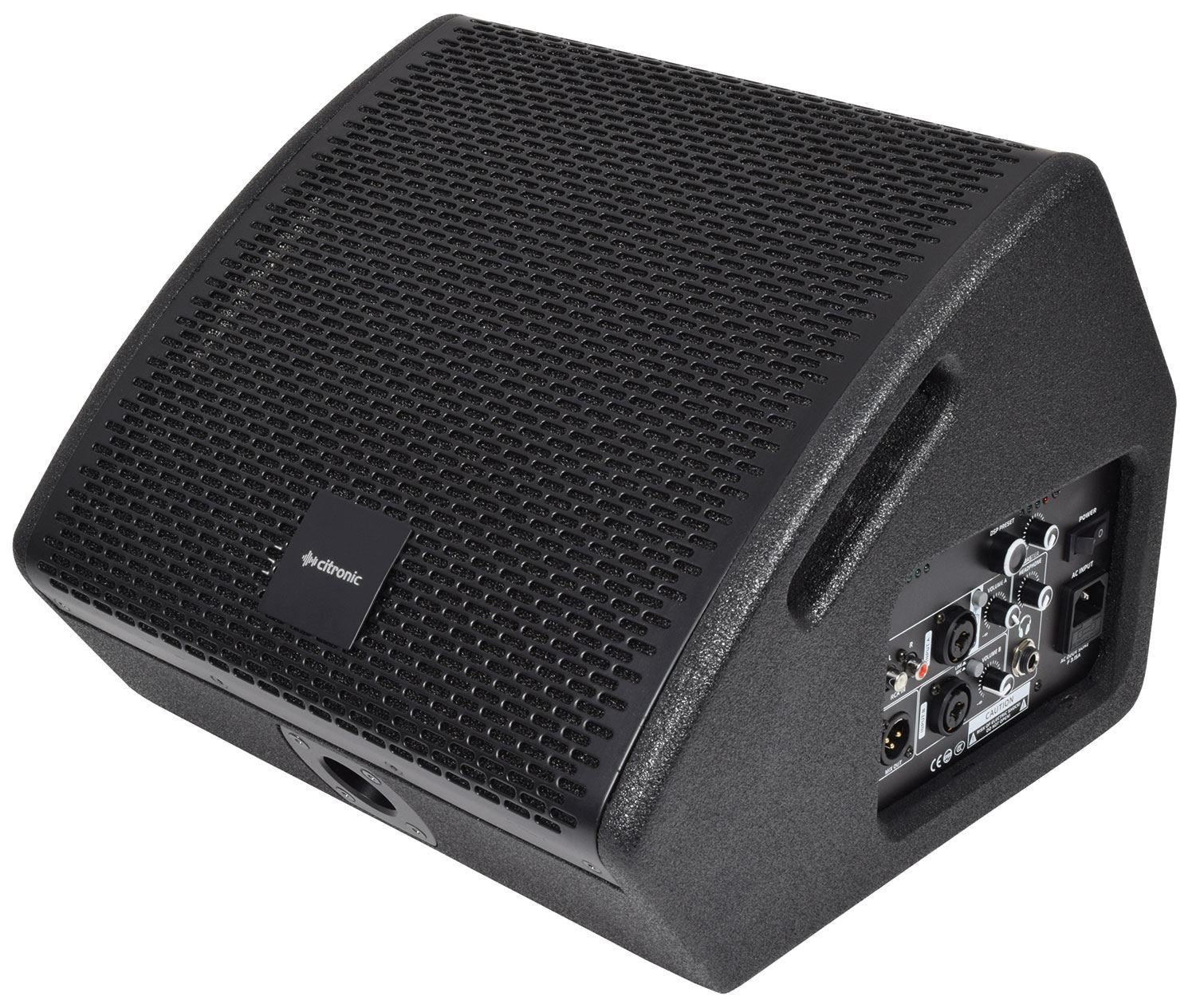

CM-Series Active Wedge Monitors inc. Bluetooth®

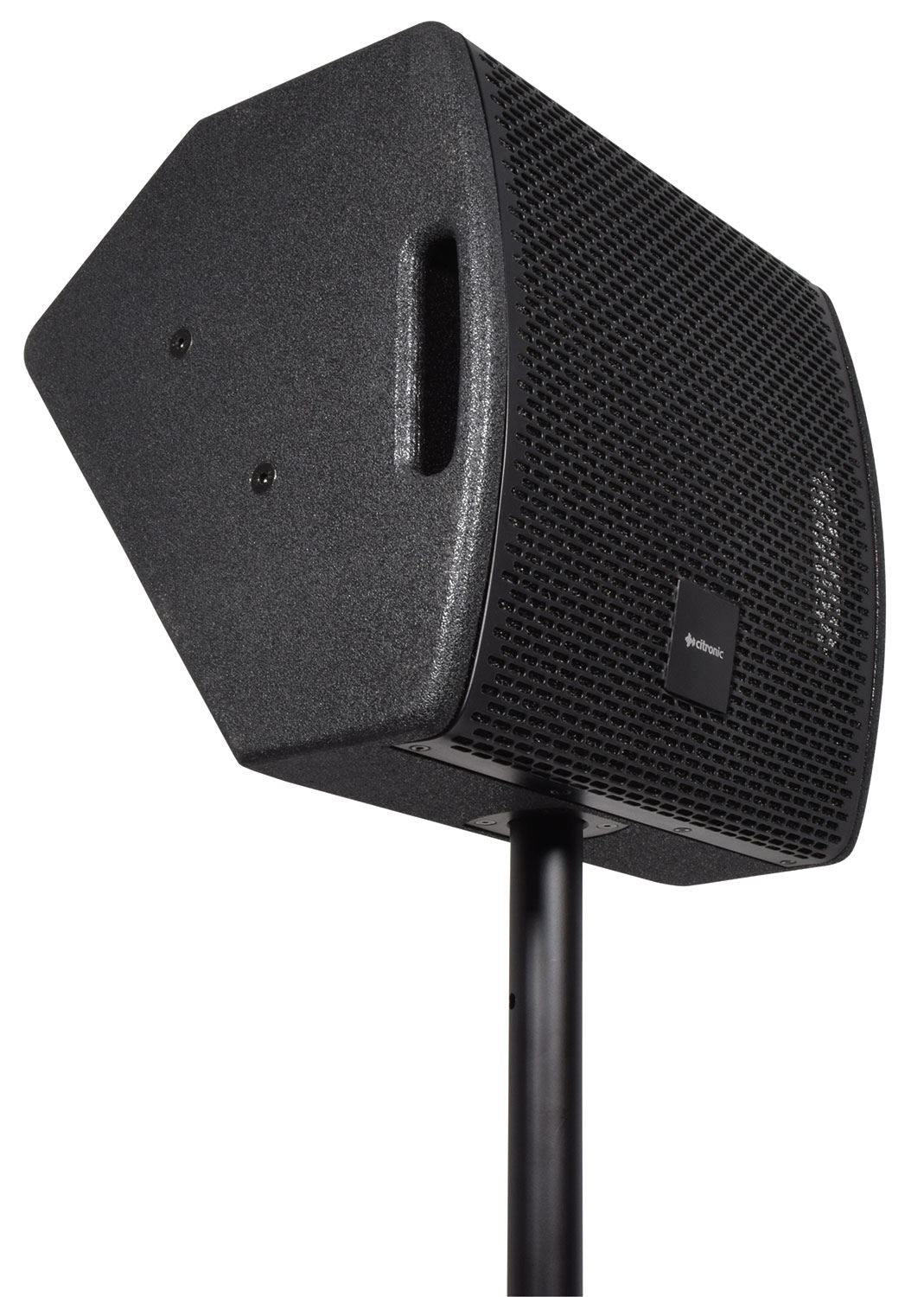

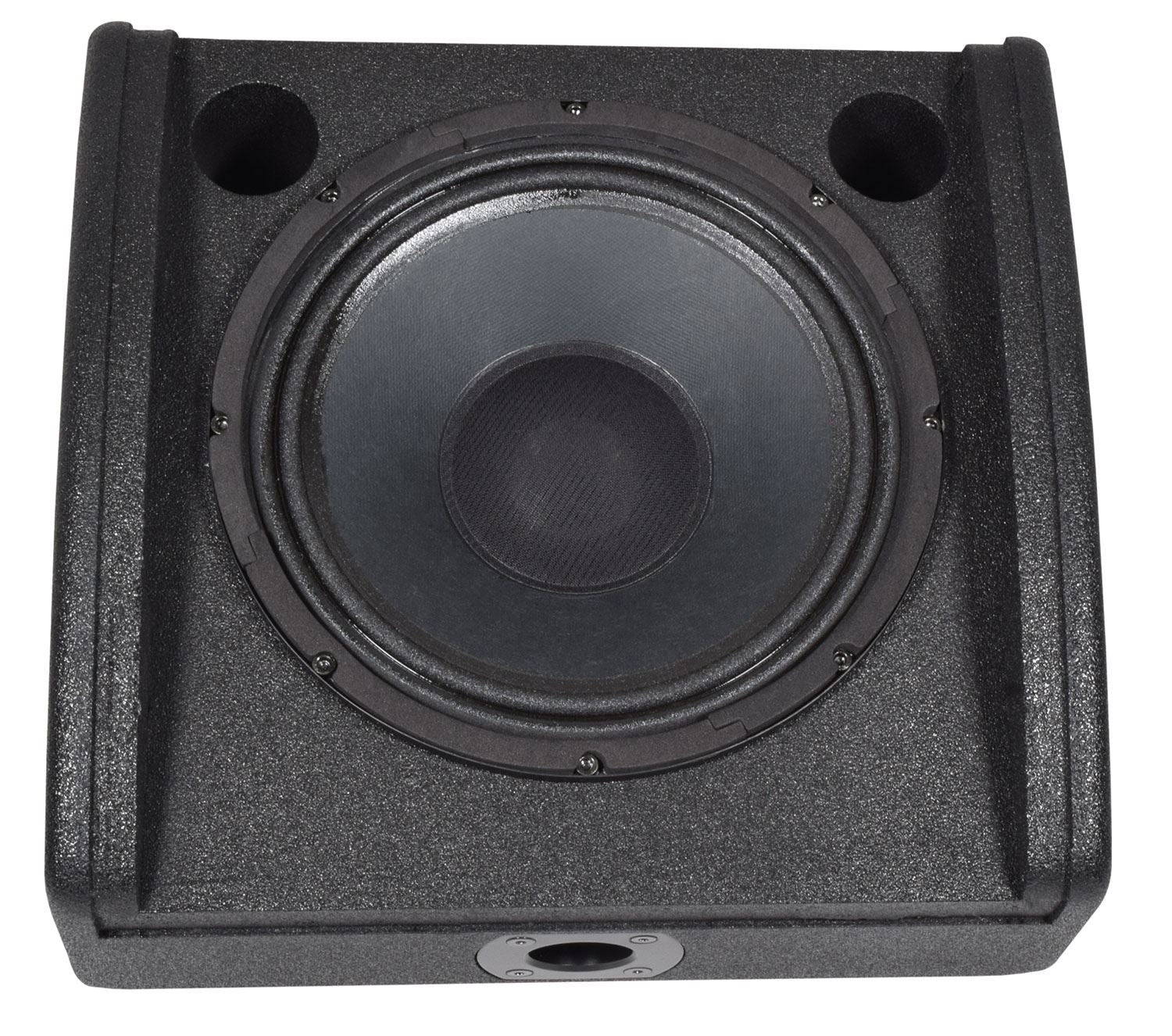

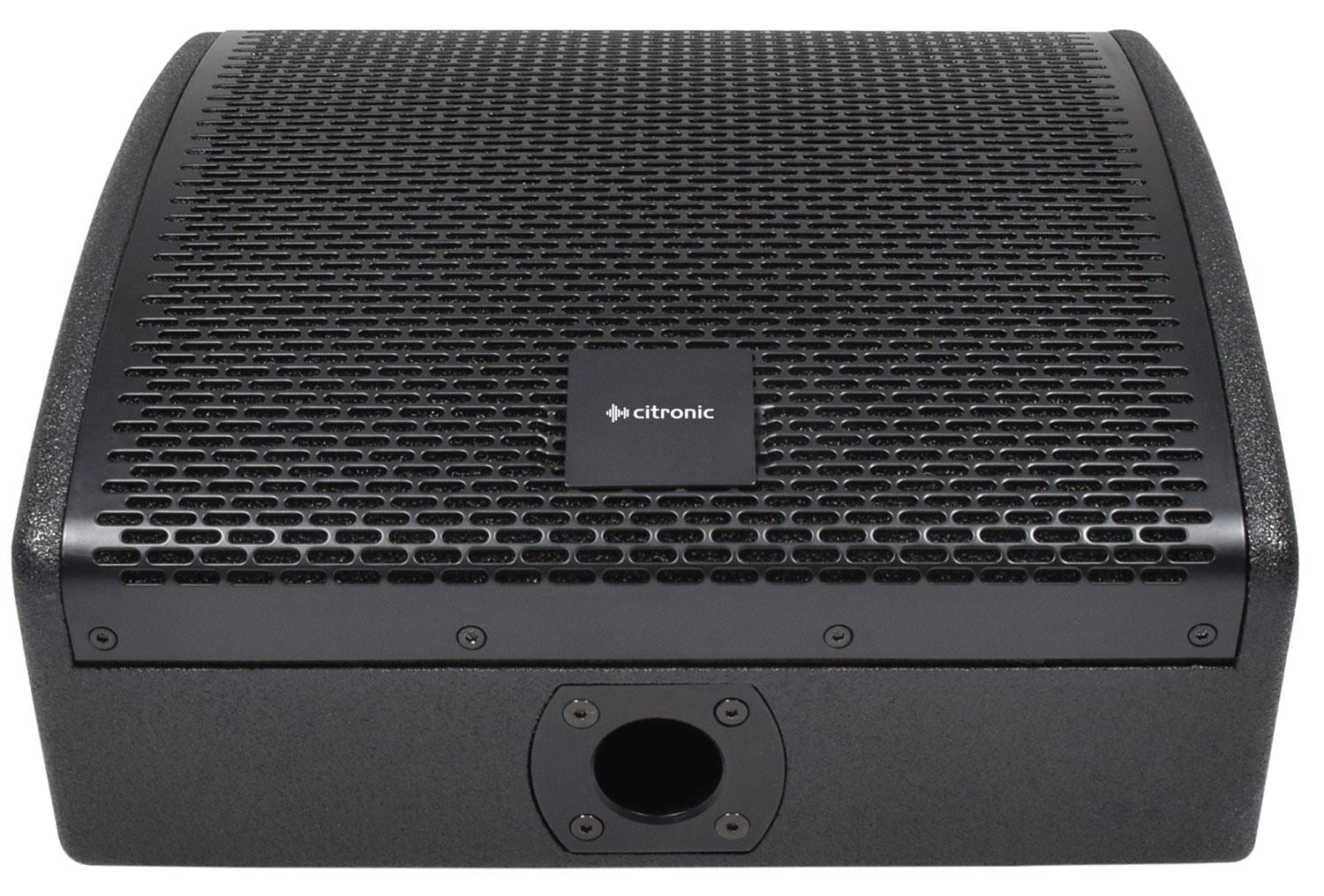

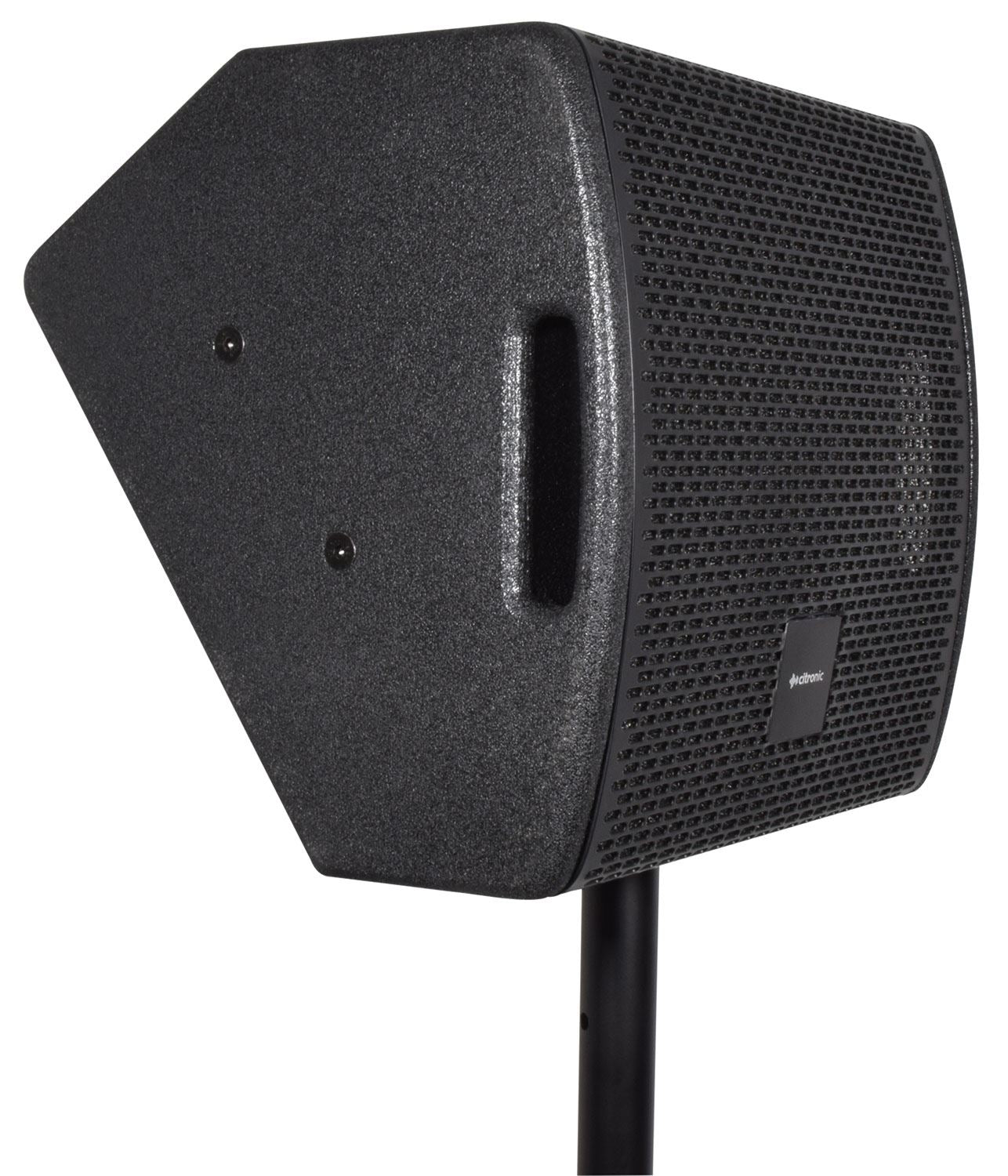

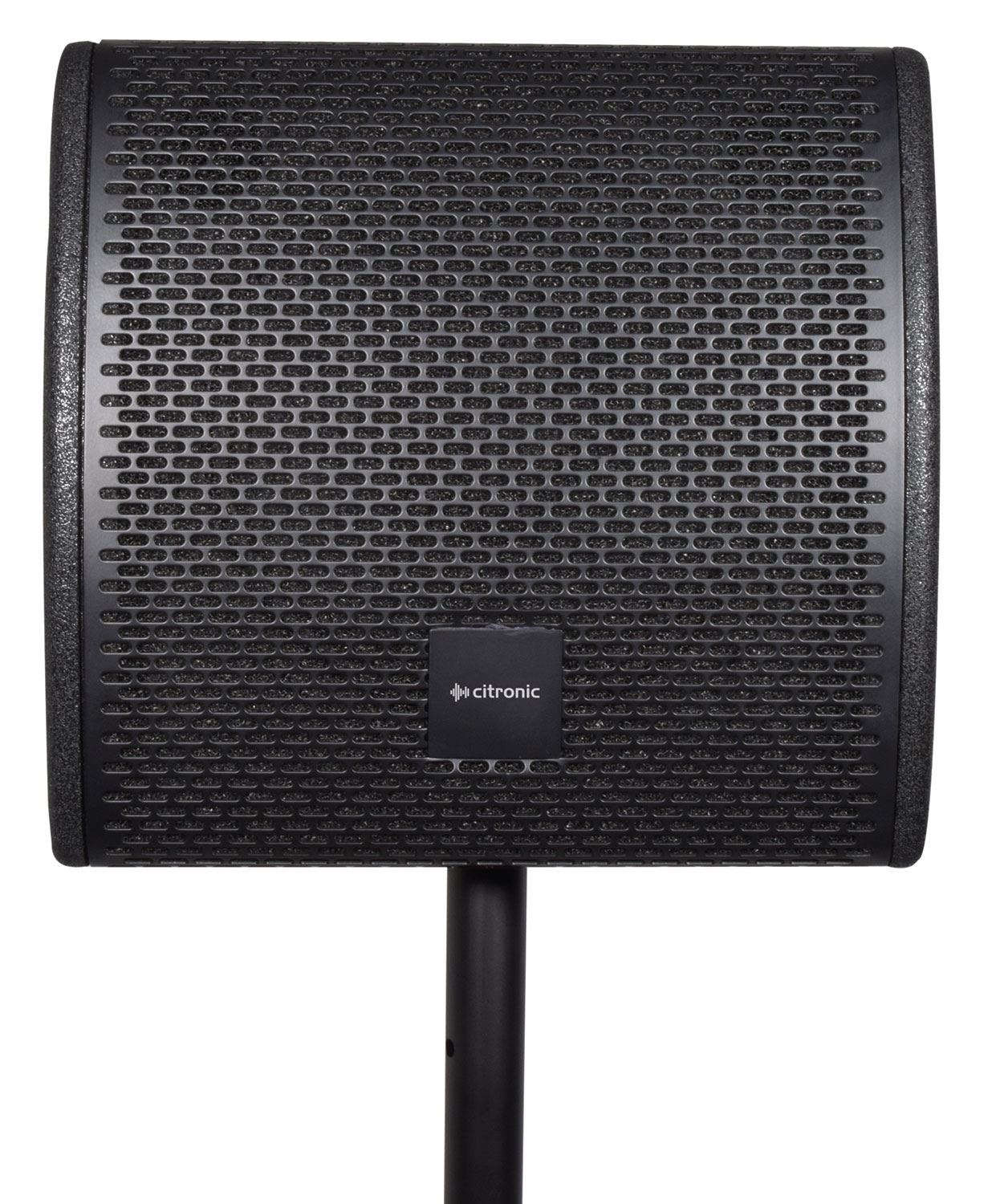

Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. Powered from its inbuilt class-D amplifier, each wedge has enough output to deliver clear sound quality in high SPL situations and is even serviceable independently as a compact PA cabinet, thanks to the 35mm pole mount socket and M8 flying points. A DSP section provides 5 different EQ profiles to accurately match the program material and sound environment. In addition to a mic/lin input and separate line input, the CM-series wedges also have a Bluetooth® receiver, which makes it ideal as a musician's practice amplifier. Surprisingly powerful in such a compact enclosure, this speaker offers high quality sound output with flexible options for stage foldback, keyboard and e-drum amplification.

Details

High power class-D bi-amplifier
Bluetooth receiver
5 Profile DSP section
Concentric HF driver

Specifications

Weight 9.87kg
HF driver 44mmØ (1.75") Ti compression driver
Amplifier : construction Class-D
Impedance 4 Ohms
DSP settings Normal, DJ. Voice, Live, Flat

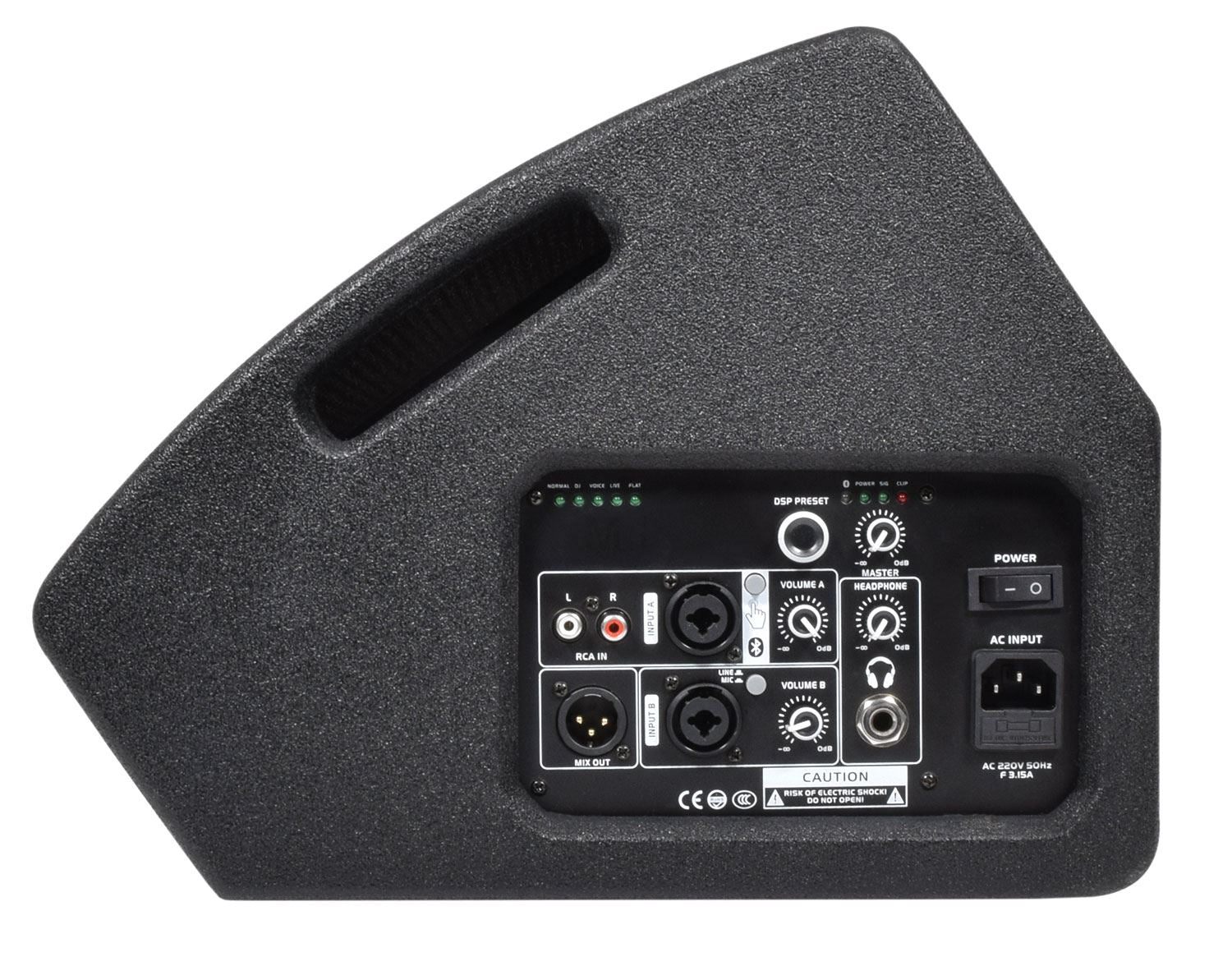

Inputs Mic/Line (XLR/jack), Line (XLR/jack/RCA), Bluetooth®
Outputs Headphones (6.35mm jack), Mix out (XLRM)
