Brand  Nedis

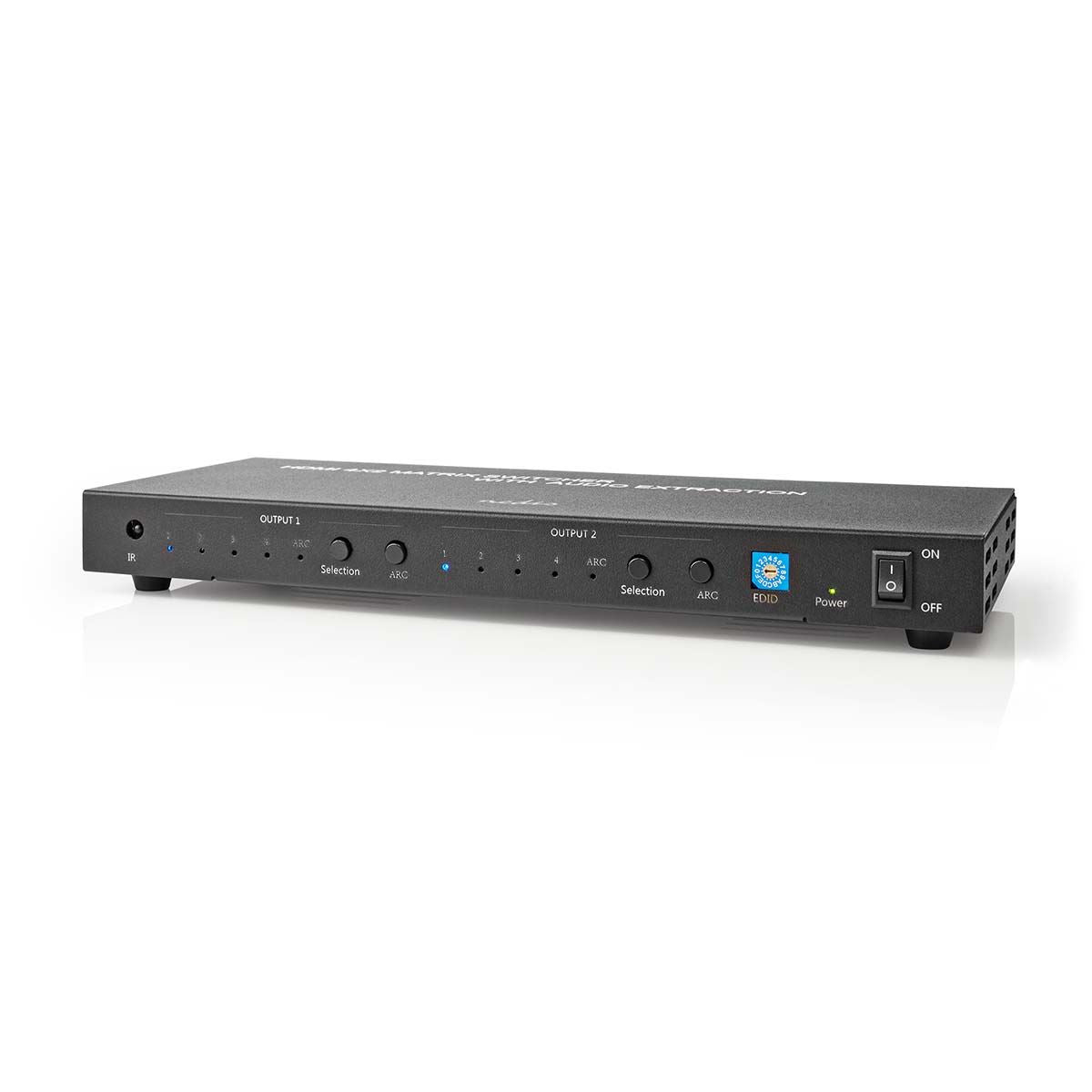

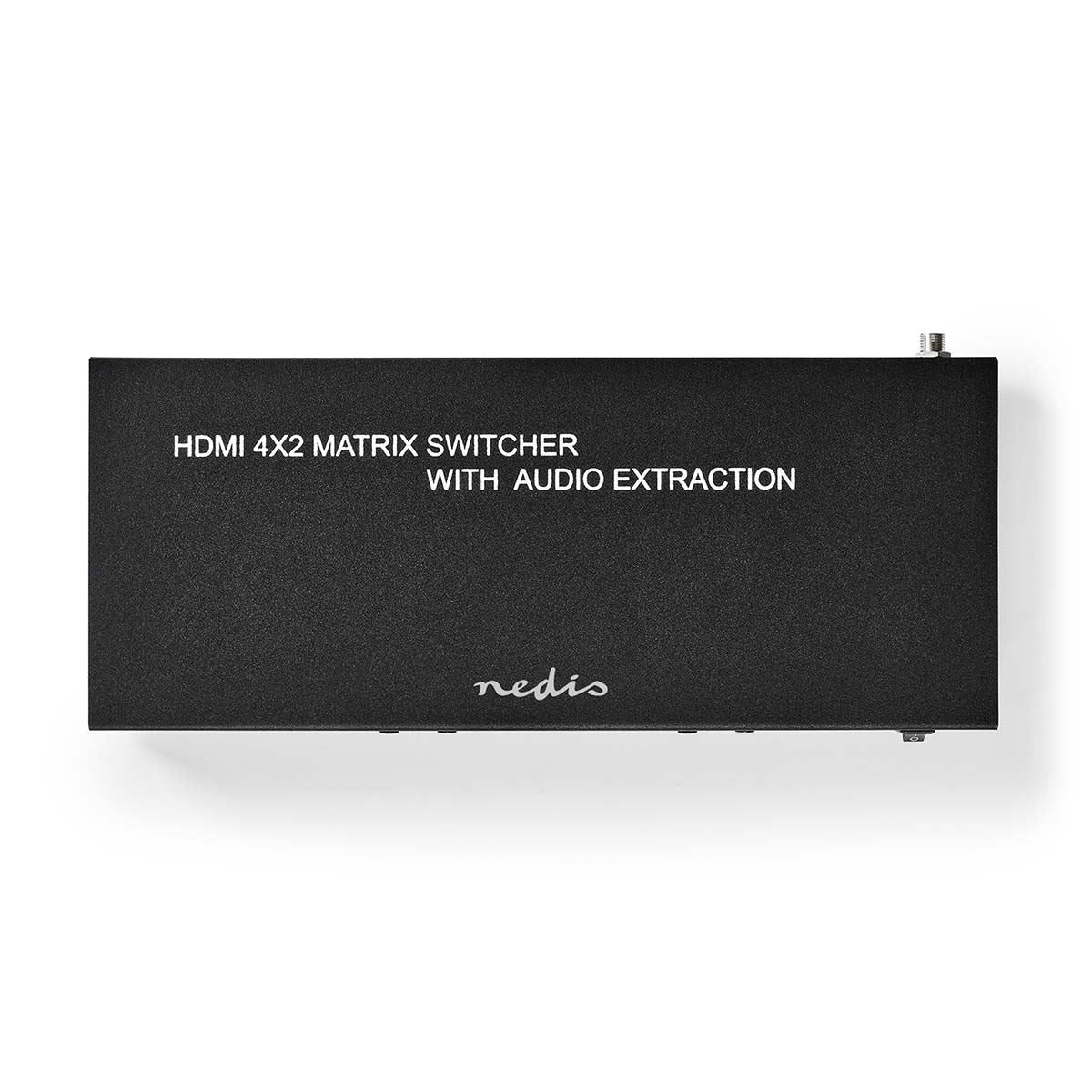

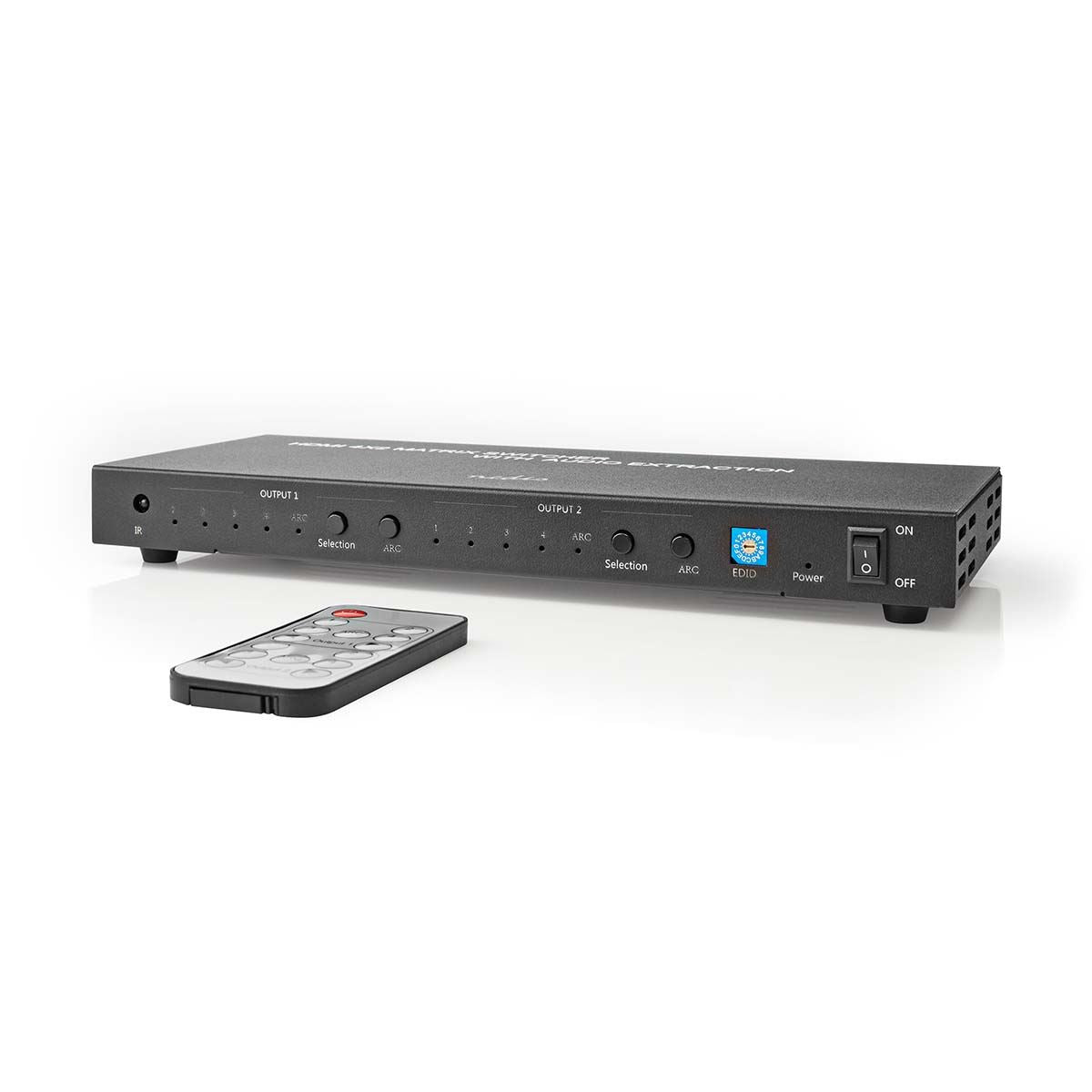

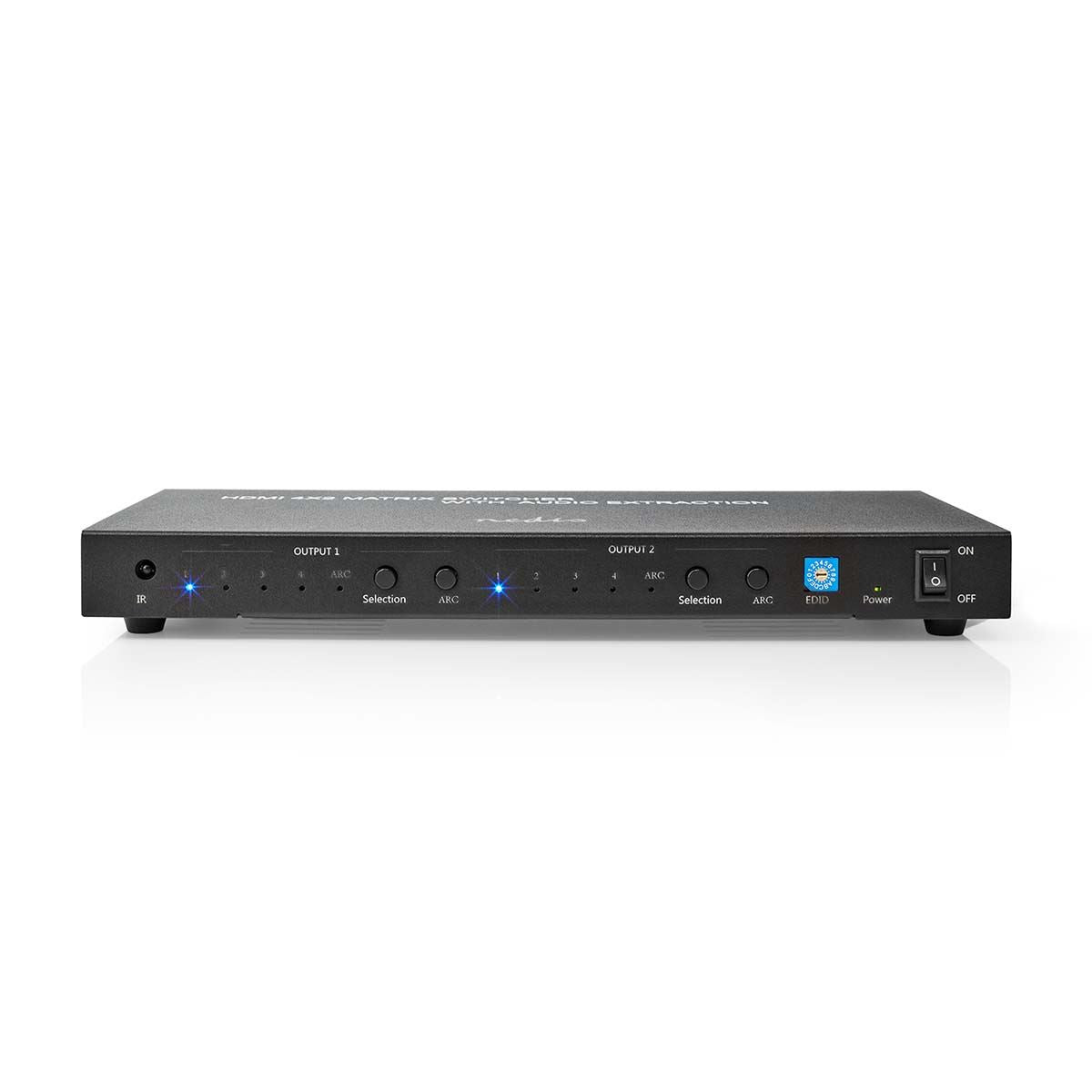

The 4K HDMI™ Matrix Switch 4x2 allows you to connect up to 4 devices with HDMI™ output to 2 TVs, monitors or beamers independently of each other and without having to swap cables, by remote control. Next to that, the matrix switch has 2x analog audio output and 2x digital audio output (optical Toslink). You can control it by the push button on the front or via the infrared remote control. Choose which device you want to see on which screen.

This allows you to watch a football match via the set-top box (input 1) on the TV (output 1) in the living room, while in another room a movie can be watched on a monitor (output 2) via the Blu-Ray player (input 3).

This HDMI™ matrix switch has an integrated HDMI™ audio extractor. This extractor ensures that the audio track is filtered from an HDMI™ cable. Via the HDMI™ outputs, audio and video are transferred to your screens and at the same time you can separately transfer the audio signal digitally and analog to a headphone, amplifier or receiver. An integrated digital to analog converter (D / A converter) ensures that the digital audio signal is converted to analog.

Details

• Supports Ultra HD HD 4Kx2K@60Hz, HDCP2.2 and 3D
• Switch comfortably between up to four HDMI sources and two playback devices (televisions, monitors, projectors) independently of each other, without having to swap cables
• Audio extractor - decoupling of audio signal from HDMI signal for external playback over amplifiers, loudspeakers, surround systems as well as headphones

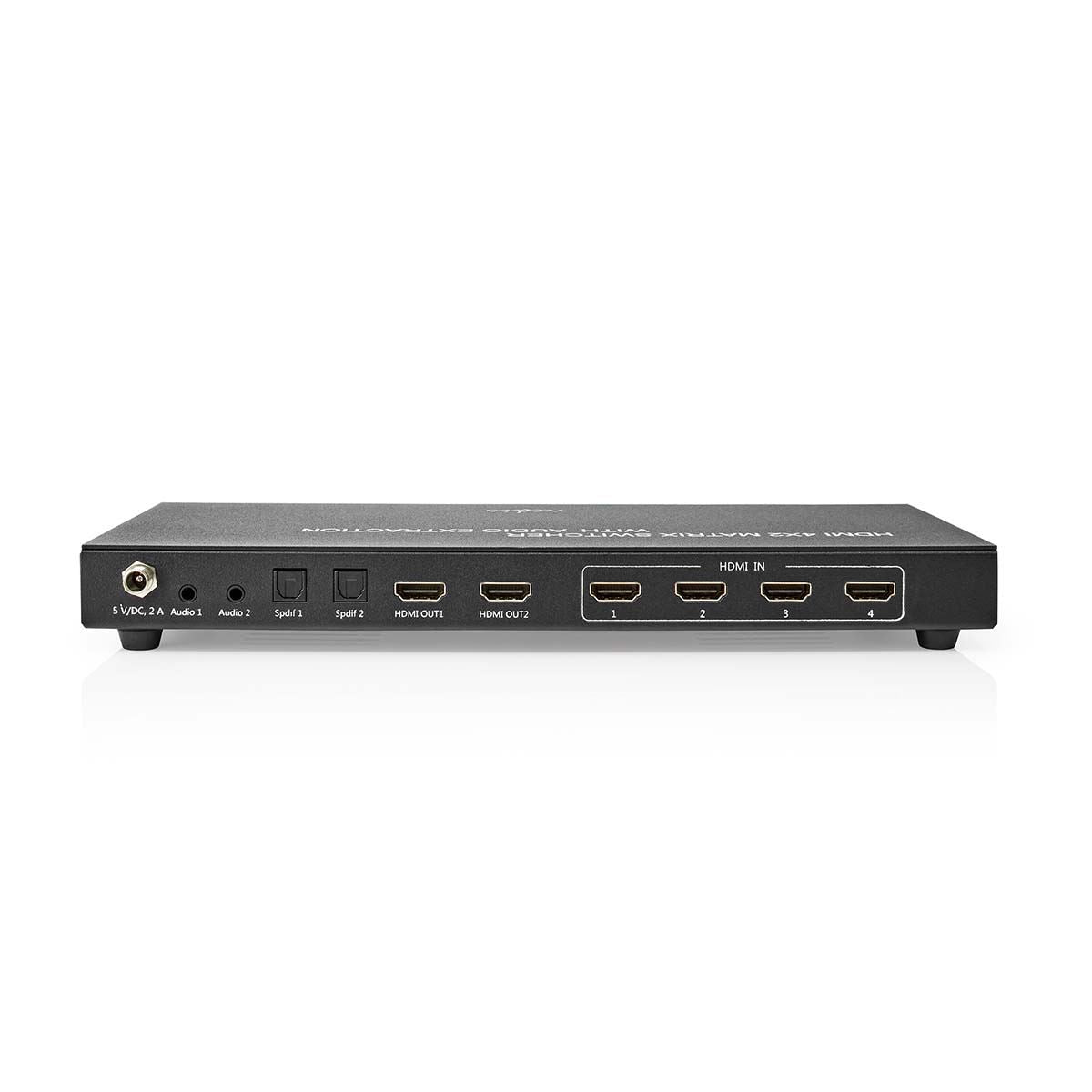

• HDMI connections: 4 inputs, 2 outputs
• Supports compressed audio formats, e.g., DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
• Supports up to 5.1CH digital surround on Toslink outputs
• Supports up to 2.0 channel analog stereo on Stereo output.


Package Contents

HDMI™ Matrix
Power adapter 5 V DC – 2 A

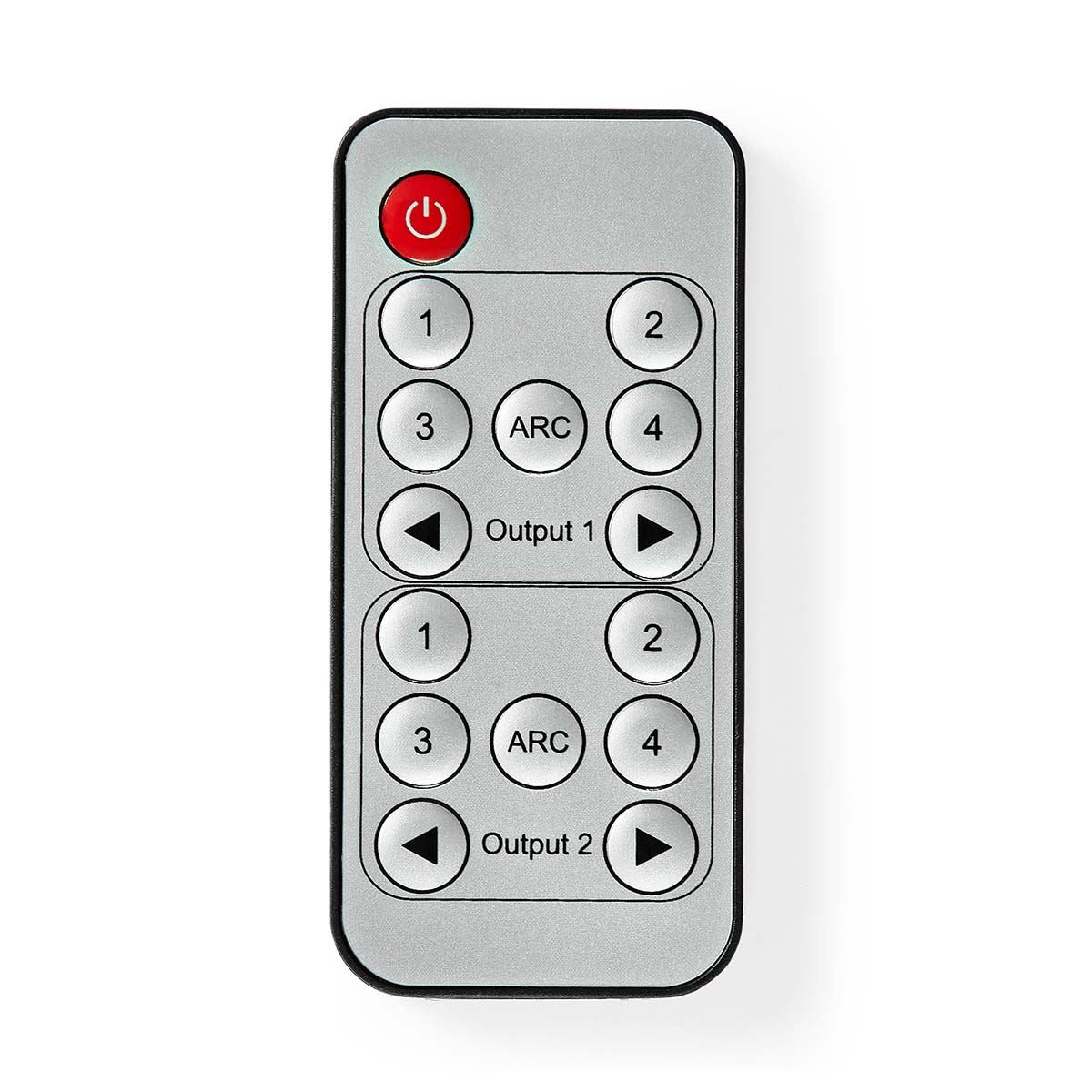

Remote control

Product Dimensions
