Brand  Nedis

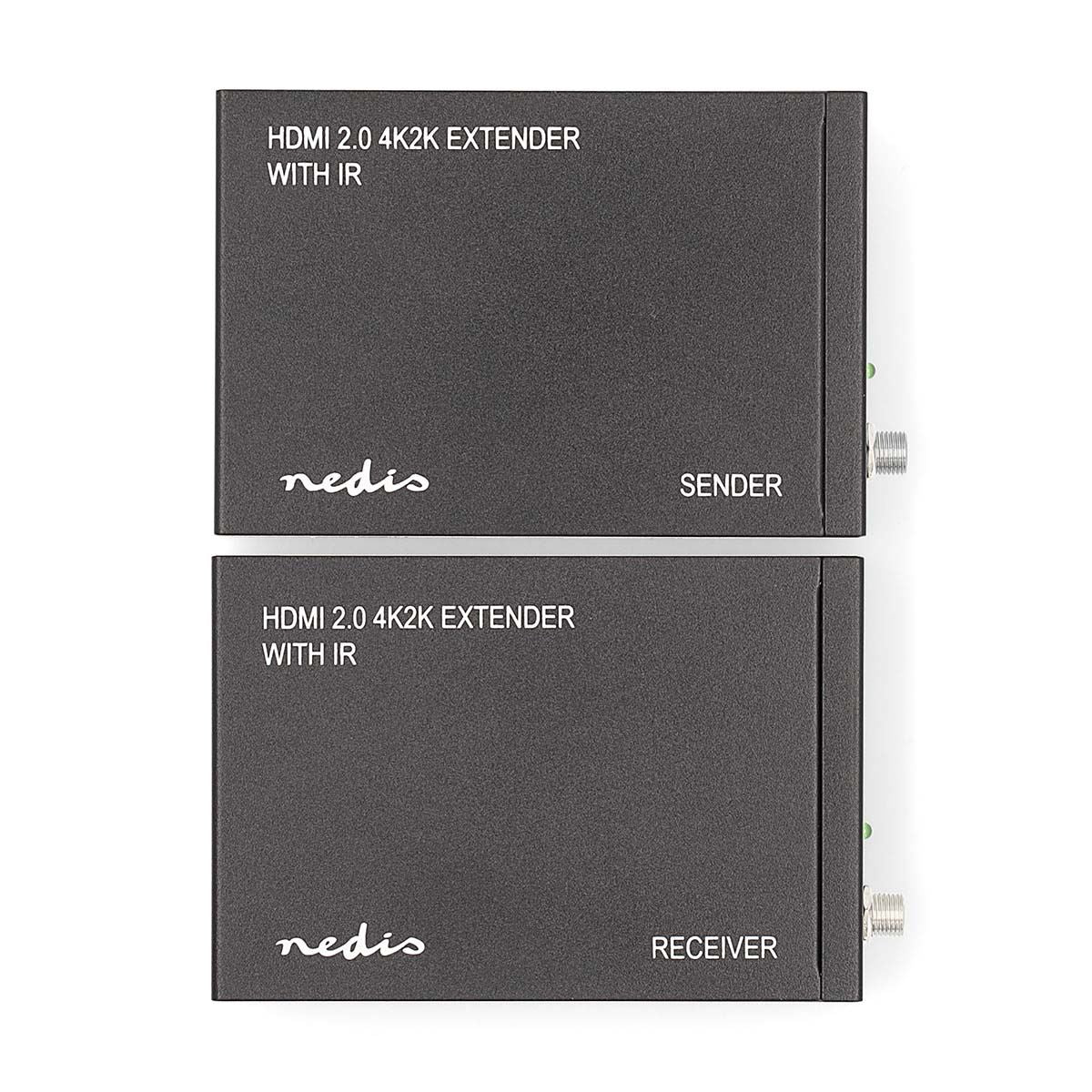

This Nedis HDMI over Ethernet extender is designed to distribute HD signals with a 4K resolution over long distances up to 60 metres. This makes it a cost-effective solution for digital signage, presentation and demonstration applications. The HDMI over IP Extender is ideal for distributing video content throughout large buildings such as schools, hotels, hospitals, shops, shopping centers and business premises.

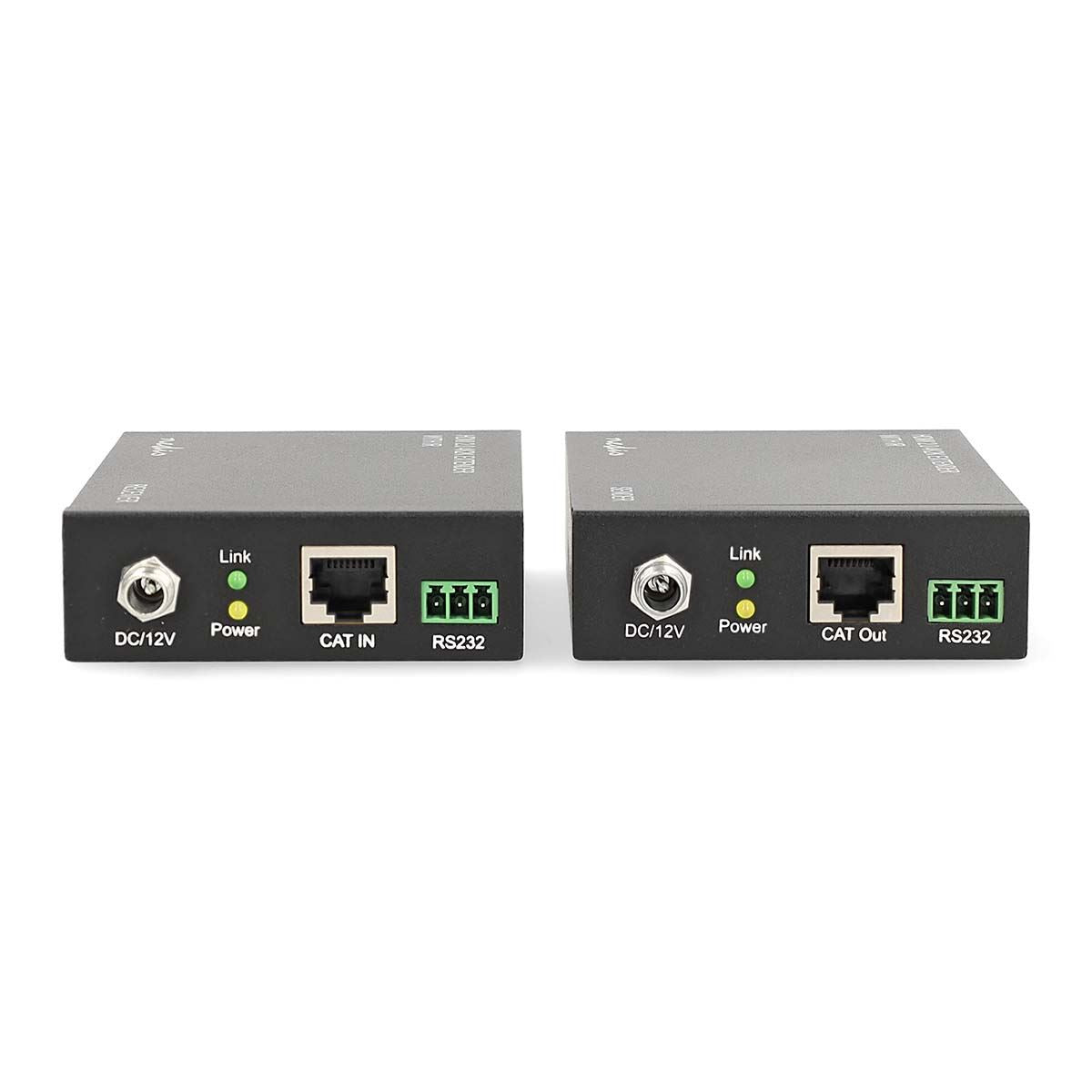

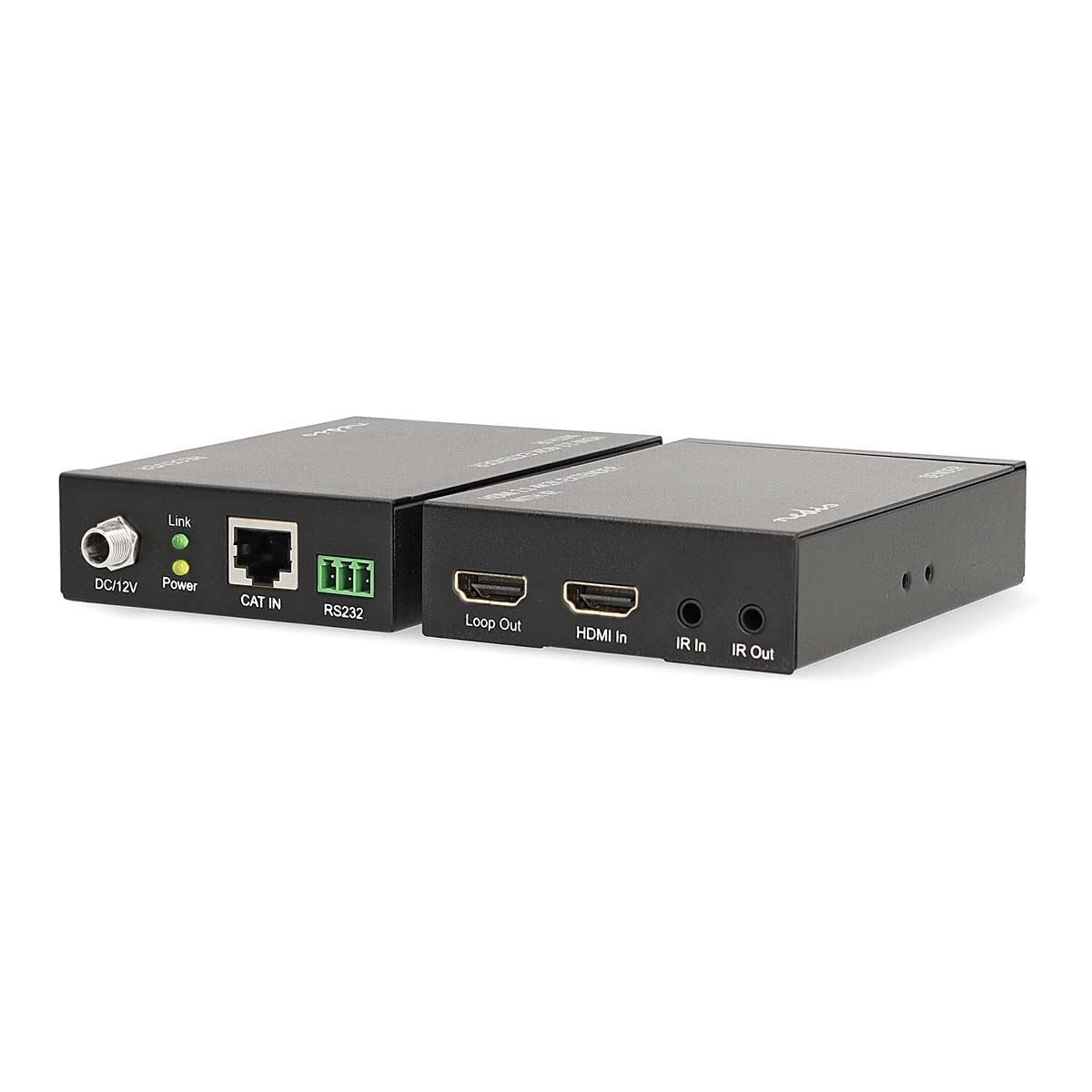

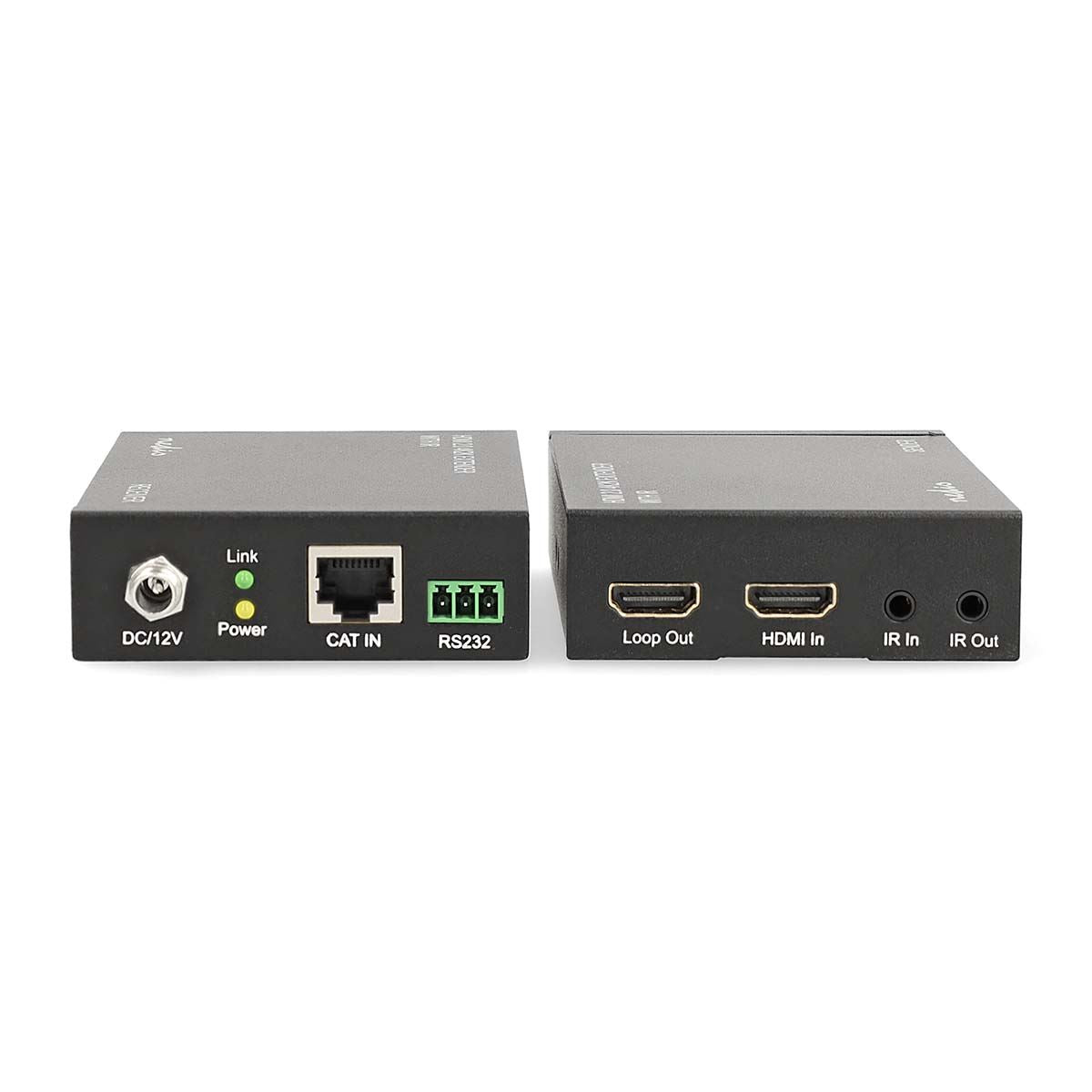

Both the transmitter and the receiver have two pairs of infrared connections which enable the bi-directional use of the remote to have control between the transmitter and receiver.

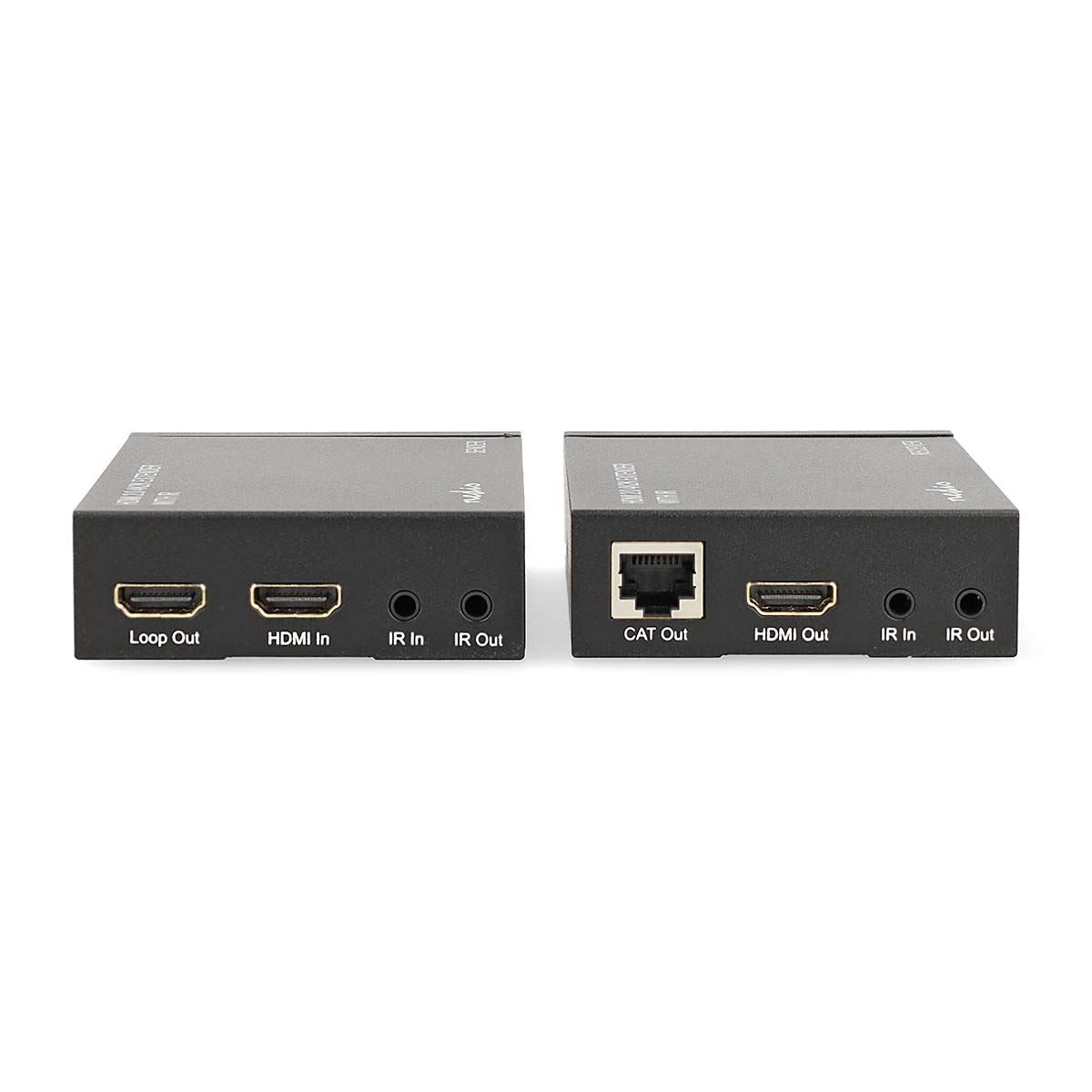

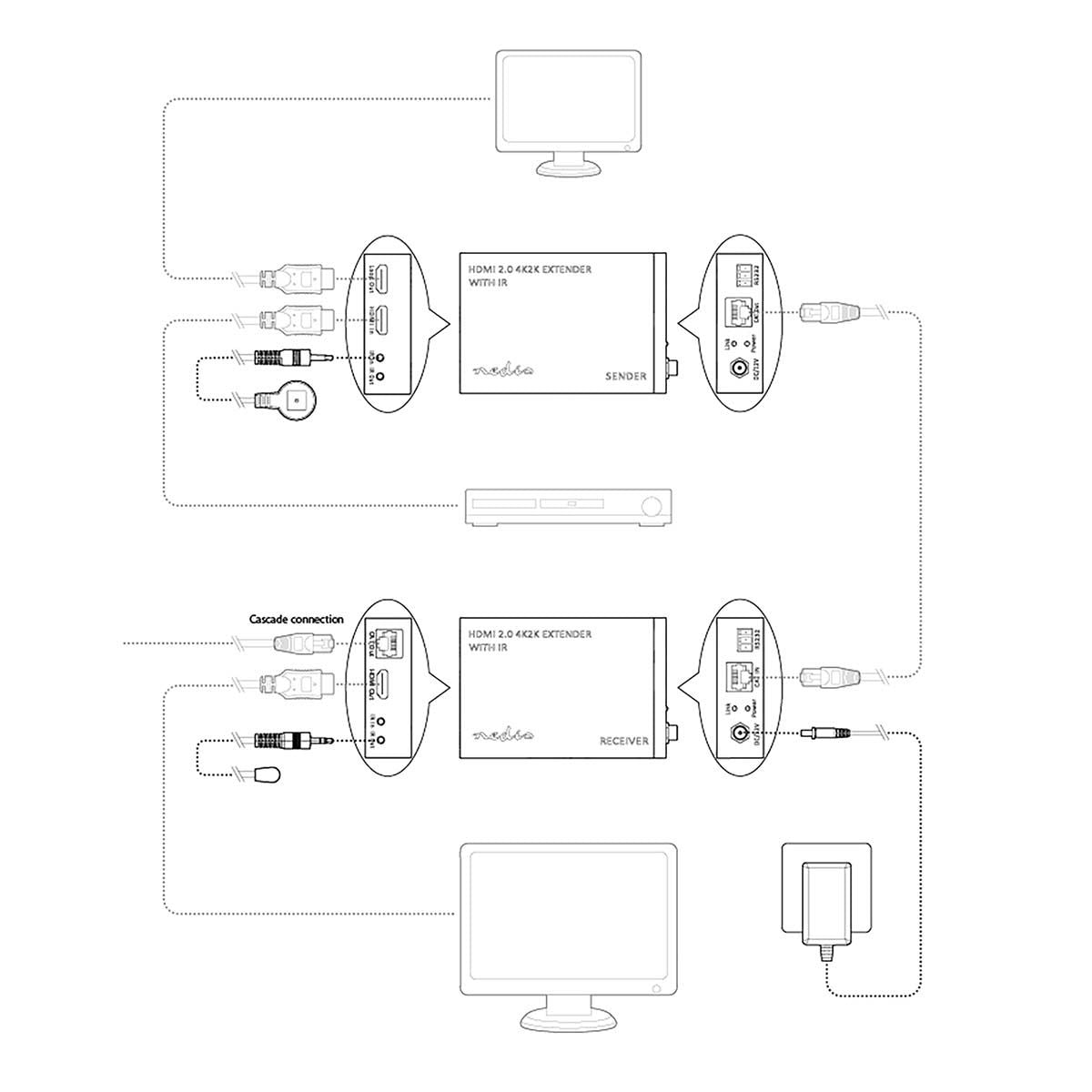

The transmitter is equipped with a Local Loop Output. This means you can monitor the playback status of the device locally with an extra screen. The receiver has a Loop Output with RJ45, with this a maximum of max. eight receivers can be connected in-line to create a longer distribution in length.

Details

• 4K@60Hz
• Amplification of digital video signals up to 60 m
• Long-distance cover via Cat 5e/6 cables
• Max. transfer rate: 18 Gbps all channels
• Supported colours: 12 bits per channel
• Deep Colour
• Supported audio formats: LPCM; DTS Digital, DTS-HD and Dolby True HD


Package Contents

HDMI extender transmitter unit
HDMI extender receiver unit
Power supply unit
IR transmitter unit
IR receiver unit
Quick start guide

Product Dimensions
