HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control
HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control
HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control
HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control
HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control
Description
Easily extend a high definition HDMI source over a single Cat5e/6 network cable. Utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

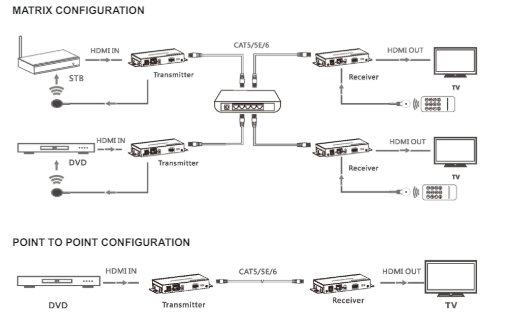

  • Matrix design supports 1-to-1 and 1-to-many configuration
  • Supports resolutions up to 1080p Full HD @60Hz
  • Maximum cable run 120m (Cat6) or 100m (Cat5e)
  • HDbitT technology for stable performance
  • Smart control app for PC and mobile devices
  • IR Passback support (20-60kHz frequency) to control source devices
  • HDMI 1.3, HDCP 1.4 compliant
  • Channel ID display and power/activity status LED indicators
  • Easy access reset button (TX & RX)

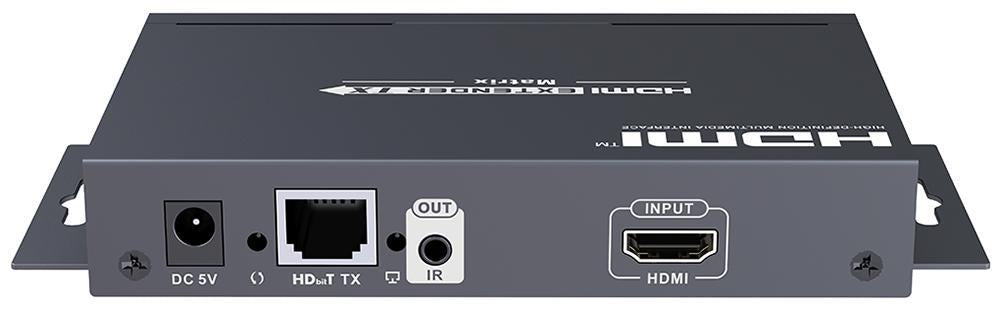

  • Transmitter connections: HDMI in, RJ45 out, IR out

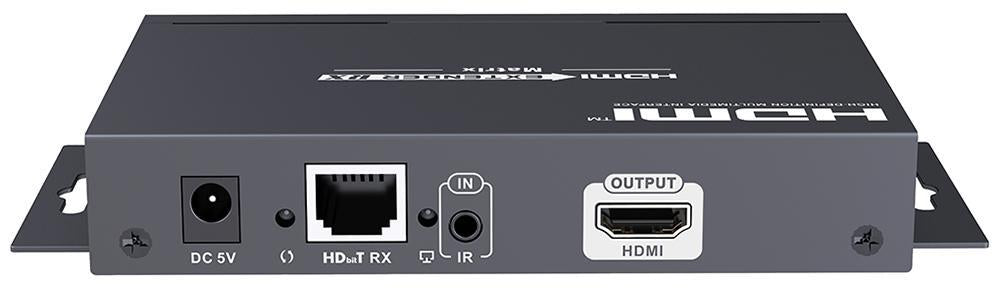

  • Receiver connections: RJ45 in, HDMI out, IR in
  • Dimensions (HxWxD): 24x133x84mm (each)

In the Box :-

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide

Product Information

Part Number AV29369

HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control

Regular price £199.99
Stock Location & Availability
Loading locations...

What does this mean? See more on our Delivery page.



Specifications
No video available for this product
Easily extend a high definition HDMI source over a single Cat5e/6 network cable. Utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.
  • Matrix design supports 1-to-1 and 1-to-many configuration
  • Supports resolutions up to 1080p Full HD @60Hz
  • Maximum cable run 120m (Cat6) or 100m (Cat5e)
  • HDbitT technology for stable performance
  • Smart control app for PC and mobile devices
  • IR Passback support (20-60kHz frequency) to control source devices
  • HDMI 1.3, HDCP 1.4 compliant
  • Channel ID display and power/activity status LED indicators
  • Easy access reset button (TX & RX)
  • Transmitter connections: HDMI in, RJ45 out, IR out
  • Receiver connections: RJ45 in, HDMI out, IR in
  • Dimensions (HxWxD): 24x133x84mm (each)

In the Box :-

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide


Part Number AV29369

HDMI Extender HDBitT 120m Over Single Cat5/Cat6 with IR Control
Regular price £199.99
