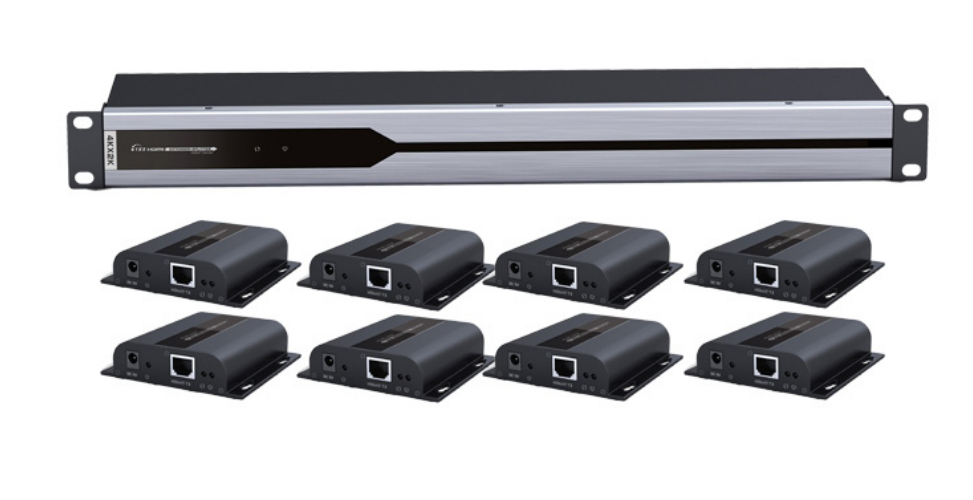

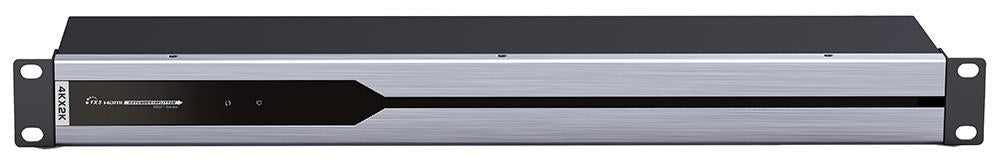

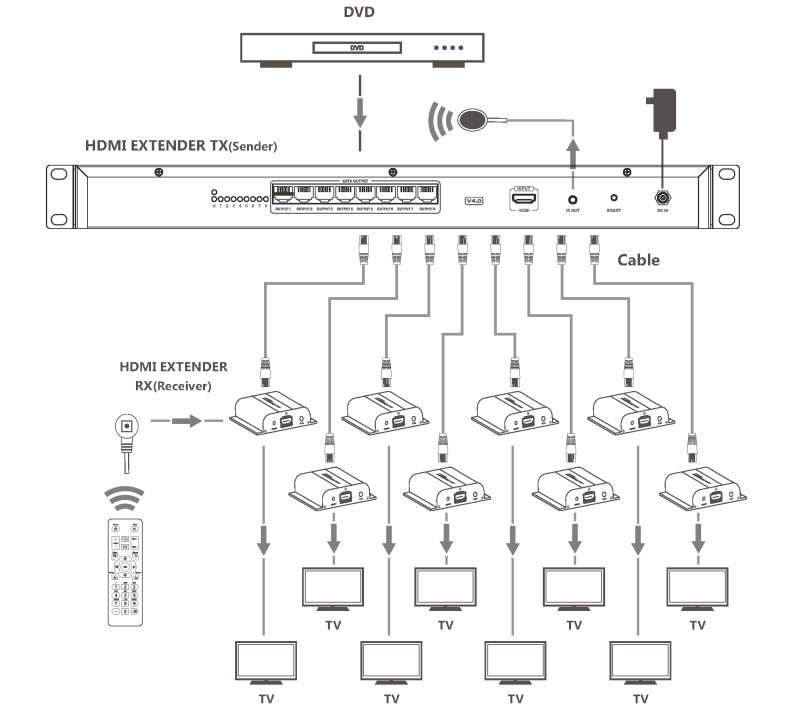

High performance HDbitT splitter that distributes a 4K HDMI source to eight identical displays at the same time over a network cable. Makes for an ideal AV distribution solution for large scale residential and digital signage applications.
Specifications
Voltage/Current DC 12V 2A
Power consumption <24W
HDMI compliance HDMI 1.4
HDCP compliance HDCP 2.2
HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
4Kx2K@24/25/30Hz
IR signal Support 20~60kHz IR device
Network CAT5/5e/6 <80m/<100m/<120m
Working temperature 0~60°C
Storage temperature -30~ 70°C
Humidity 0~90%RH (no condensation)
Dimension (splitter) 483(W) x 110(D) x 45(H)mm
Material Alloy
Weight (splitter) 1390g
In the Box
1 x HDMI splitter, 8 x receivers
9 x Power Adapter 230VAC to 5VDC 2A
Operation Manual
1 x IR remote transmitter, 8 x IR receivers
