UM Series Ultra Compact Mixer-Amplifiers 100V

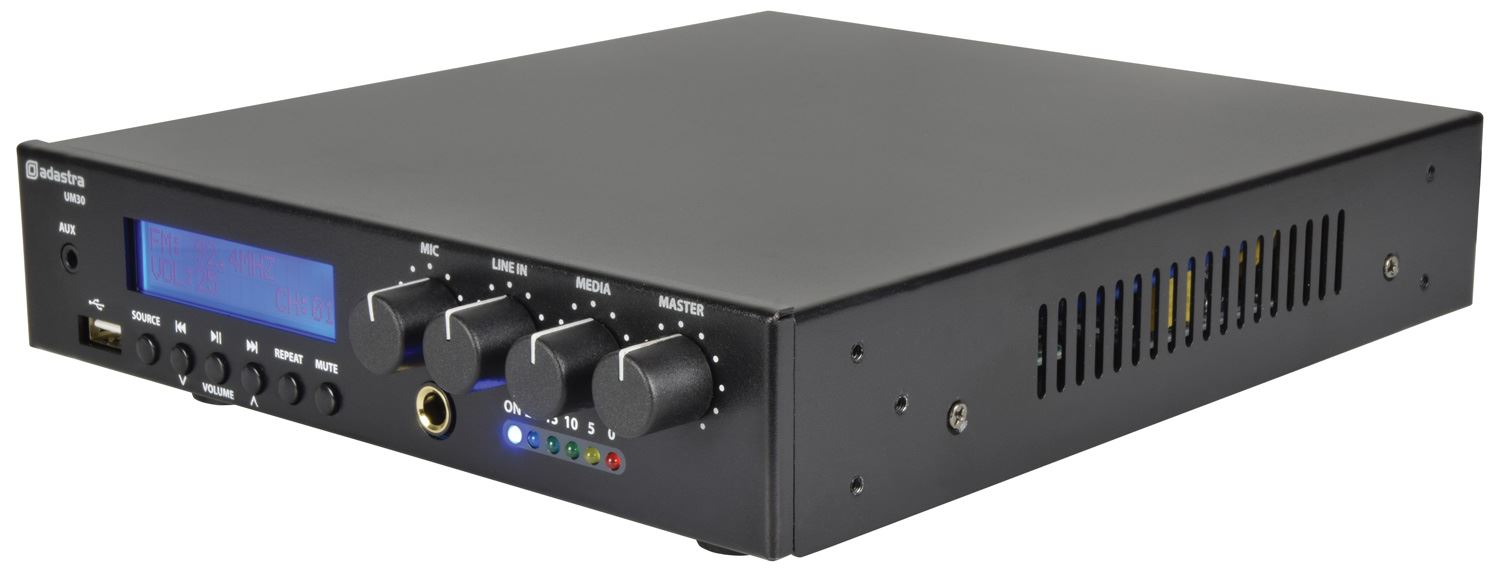

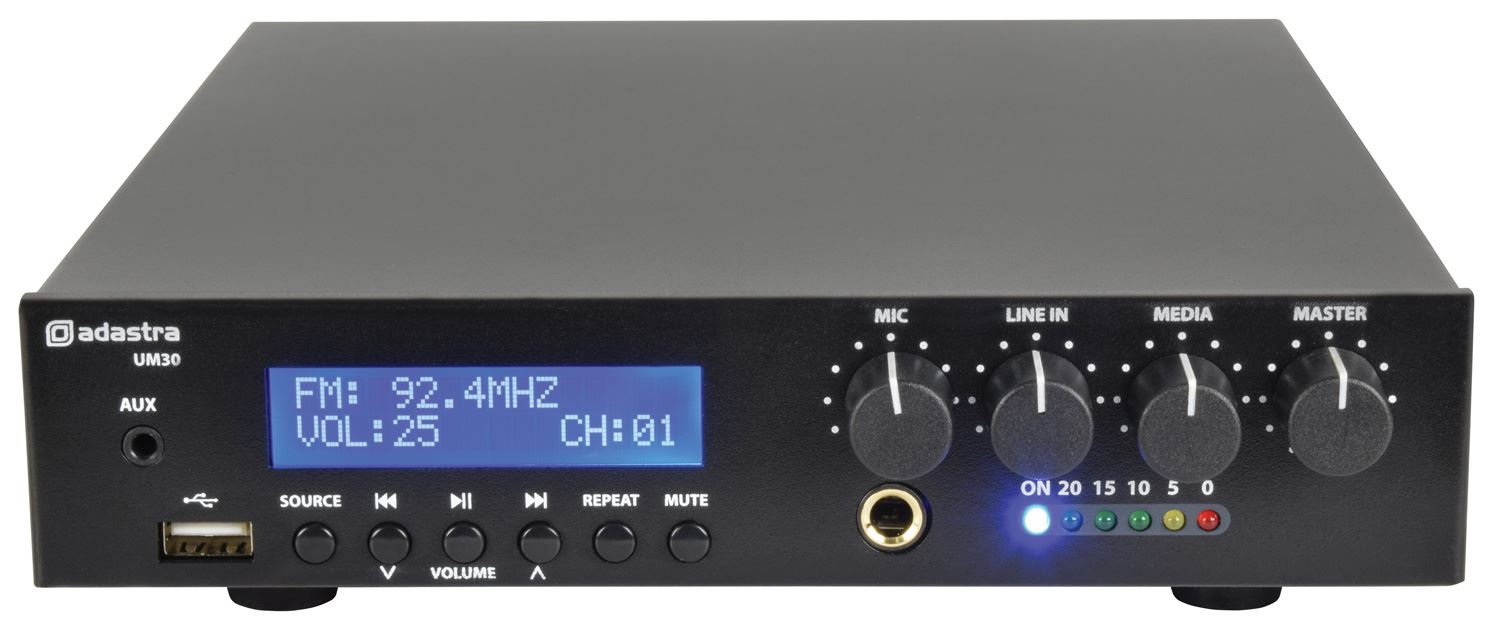

Compact UM30 mixer-amplifiers has Bluetooth connectivity, a USB audio player & an FM radio tuner.

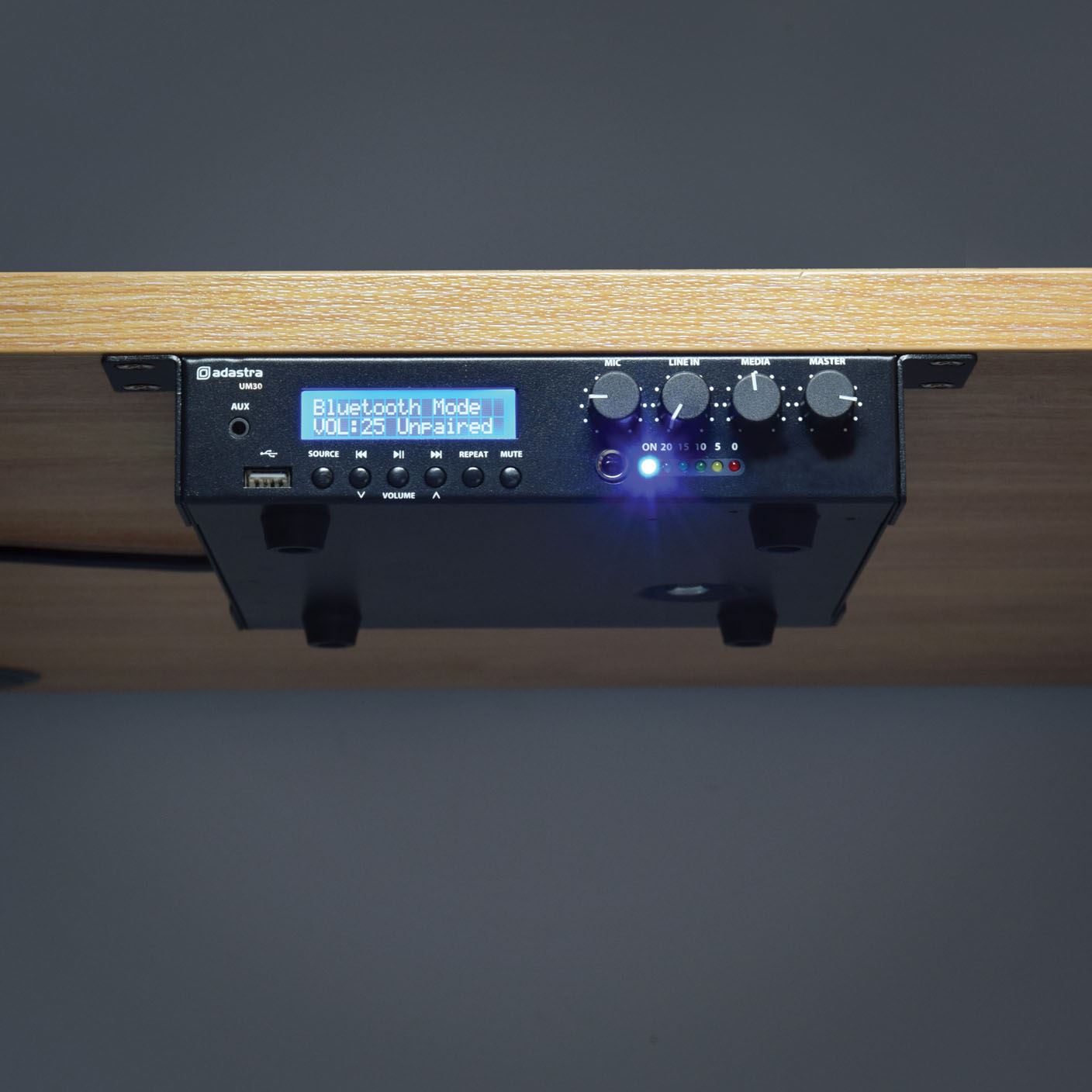

Microphone and Aux in are also an option. All controlled from the front panel & media player.

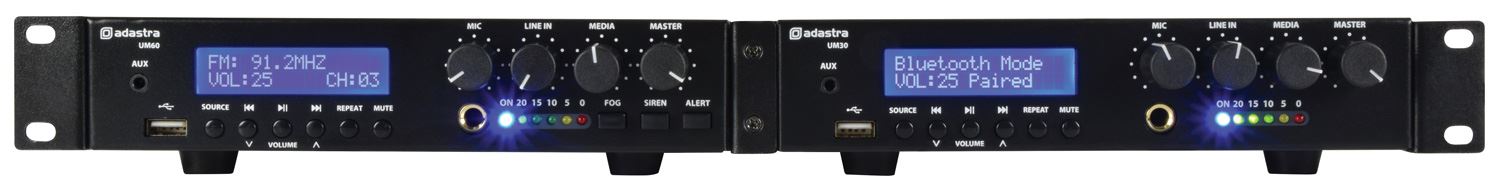

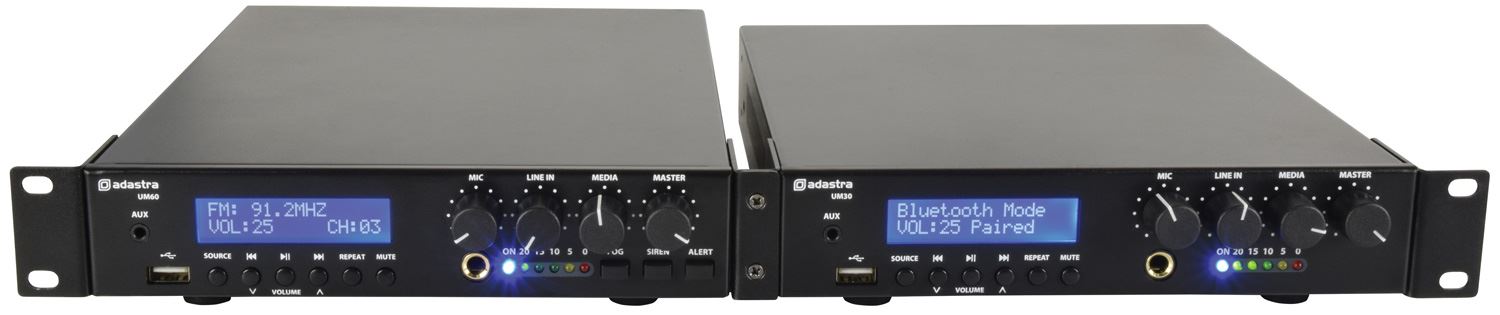

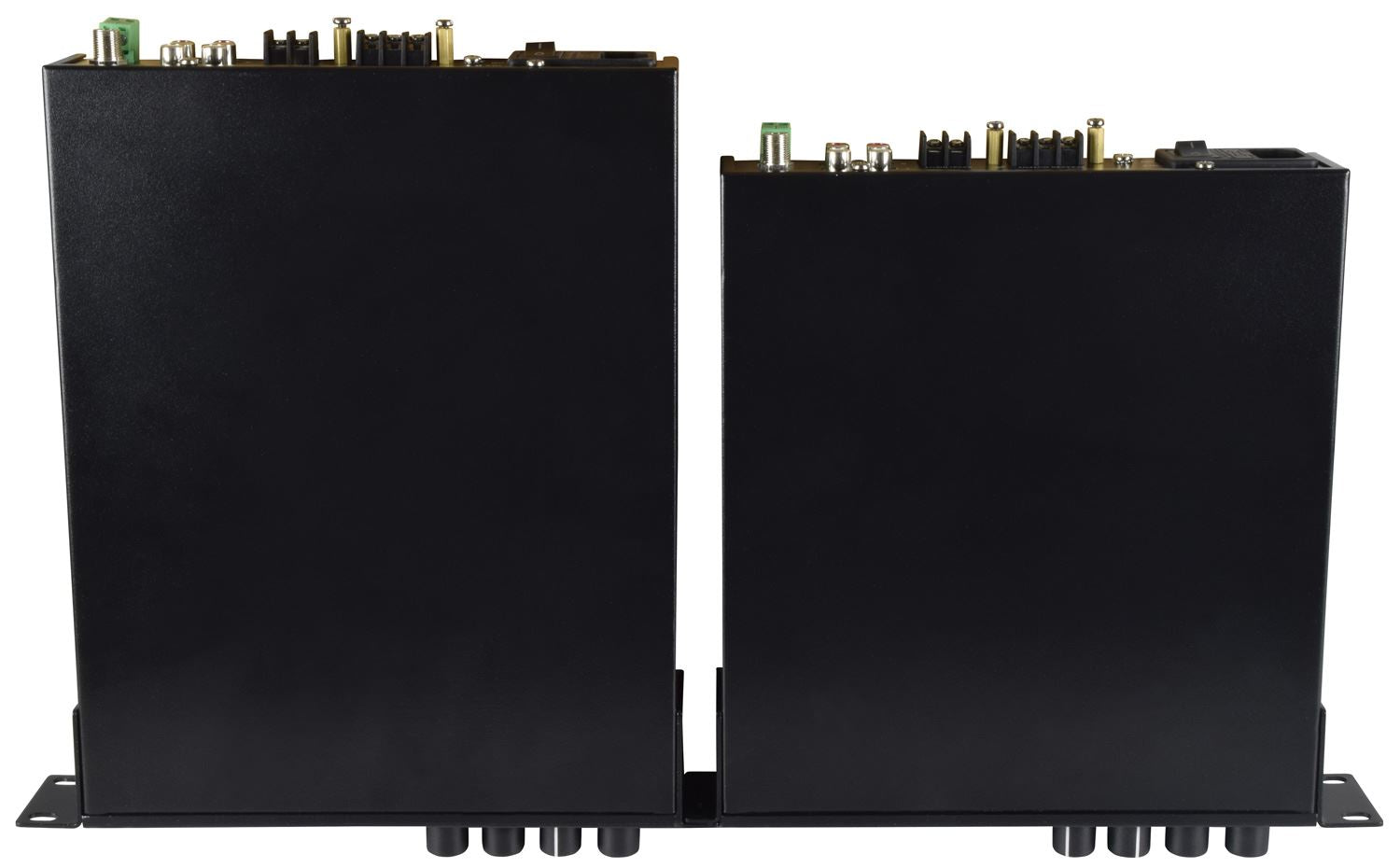

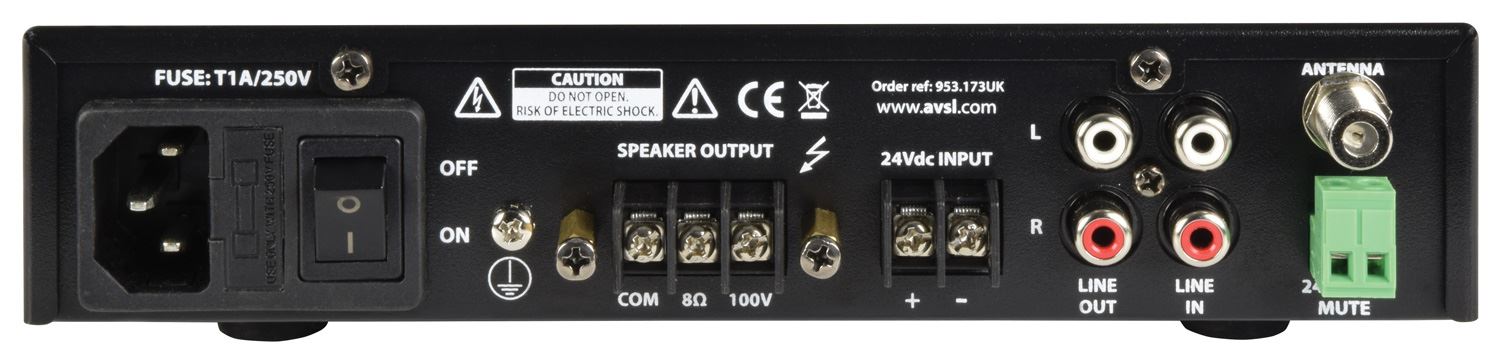

Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space.
Designed as a versatile solution for small to medium PA installations.
PRODUCT FEATURES:
Ultra compact form factor Efficient class D amplifier design Internal USB/FM/BT audio player 100V line or 8 Ohms operationSPECIFICATION:

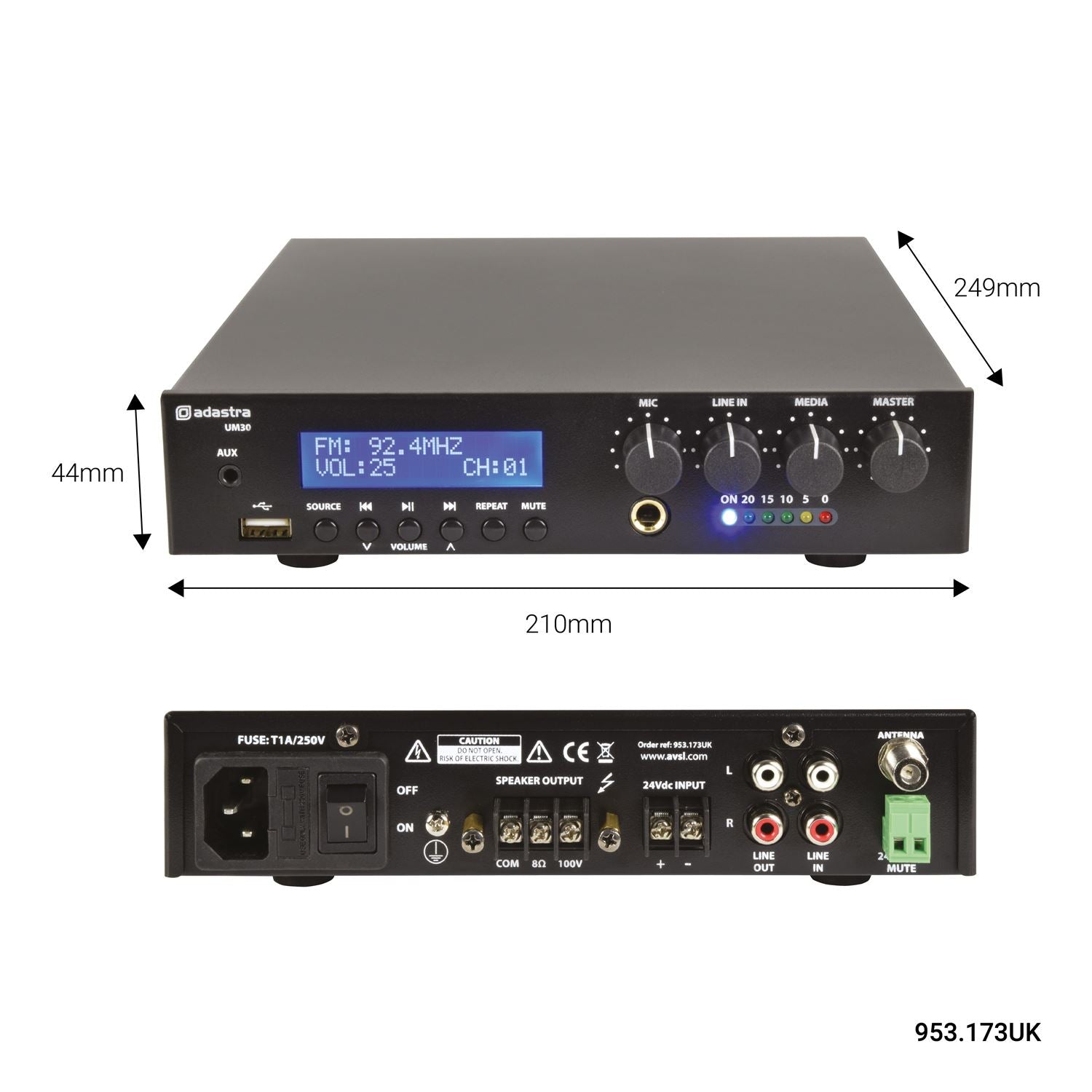

Specification : Common Power supply170-264Vac, 50Hz (IEC) Amplifier : constructionClass D + transformer output Audio sourceInternal USB/FM/BT player Inputs1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) Line output2 x RCA (mono) Speaker outputsScrew terminals - 100V / 8 Ohms / Com DC power24Vdc screw terminals Mute24V relay contacts THD<0.4% @ 1kHz Input impedance1k Ohms (mic/line) Input sensitivity-10dB (line), -45dB (mic) SNR80dB (line), 75dB (mic) Frequency response100Hz - 18kHz Output power : rms 30W Alarm output N/A Dimensions 249 x 210 x 44mm Weight 2.35kg
