RMS-series Multi Zone 100V Amplifiers
Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.
Details
Power supply 170-264Vac, 50/60Hz (IEC)
Auxiliary input L+R RCA
Mic controls Gain, Bass, Treble & Vox (rear panel)
Output controls Level, Bass, Treble & Ch/Aux switch
Microphone input Balanced XLR (rear panel)
Phantom power +20V switchable (paging mic)
Emergency control 24V mute contacts (Euroblock terminal)
Skip to product information
Description
Product Information
Part Number 953.154UK
Packaging Box Label
RMS-series Multi Zone 100V Amplifiers
Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.
Details
Power supply 170-264Vac, 50/60Hz (IEC)
Auxiliary input L+R RCA
Mic controls Gain, Bass, Treble & Vox (rear panel)
Output controls Level, Bass, Treble & Ch/Aux switch
Microphone input Balanced XLR (rear panel)
Phantom power +20V switchable (paging mic)
Emergency control 24V mute contacts (Euroblock terminal)
Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.
Details
Power supply 170-264Vac, 50/60Hz (IEC)
Auxiliary input L+R RCA
Mic controls Gain, Bass, Treble & Vox (rear panel)
Output controls Level, Bass, Treble & Ch/Aux switch
Microphone input Balanced XLR (rear panel)
Phantom power +20V switchable (paging mic)
Emergency control 24V mute contacts (Euroblock terminal)
Part Number 953.154UK
Packaging Box Label

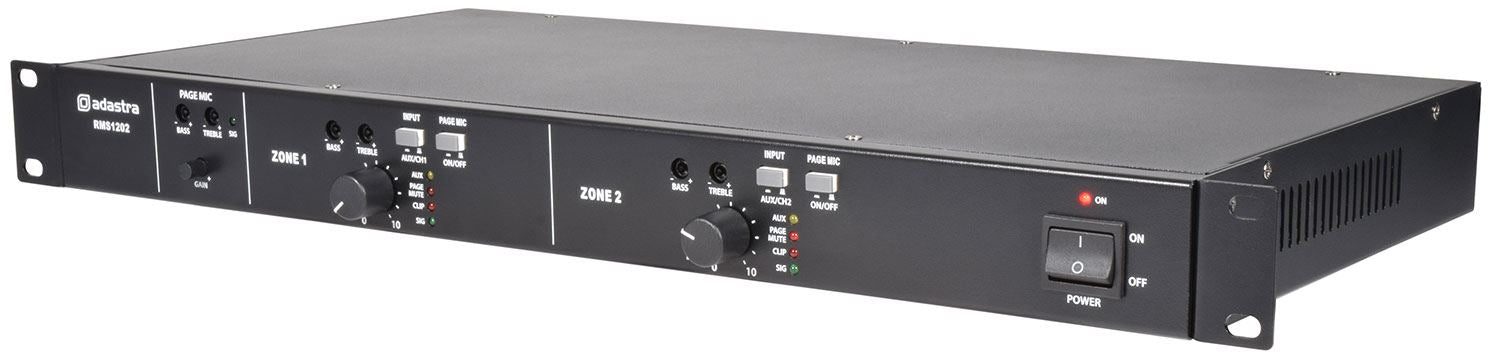

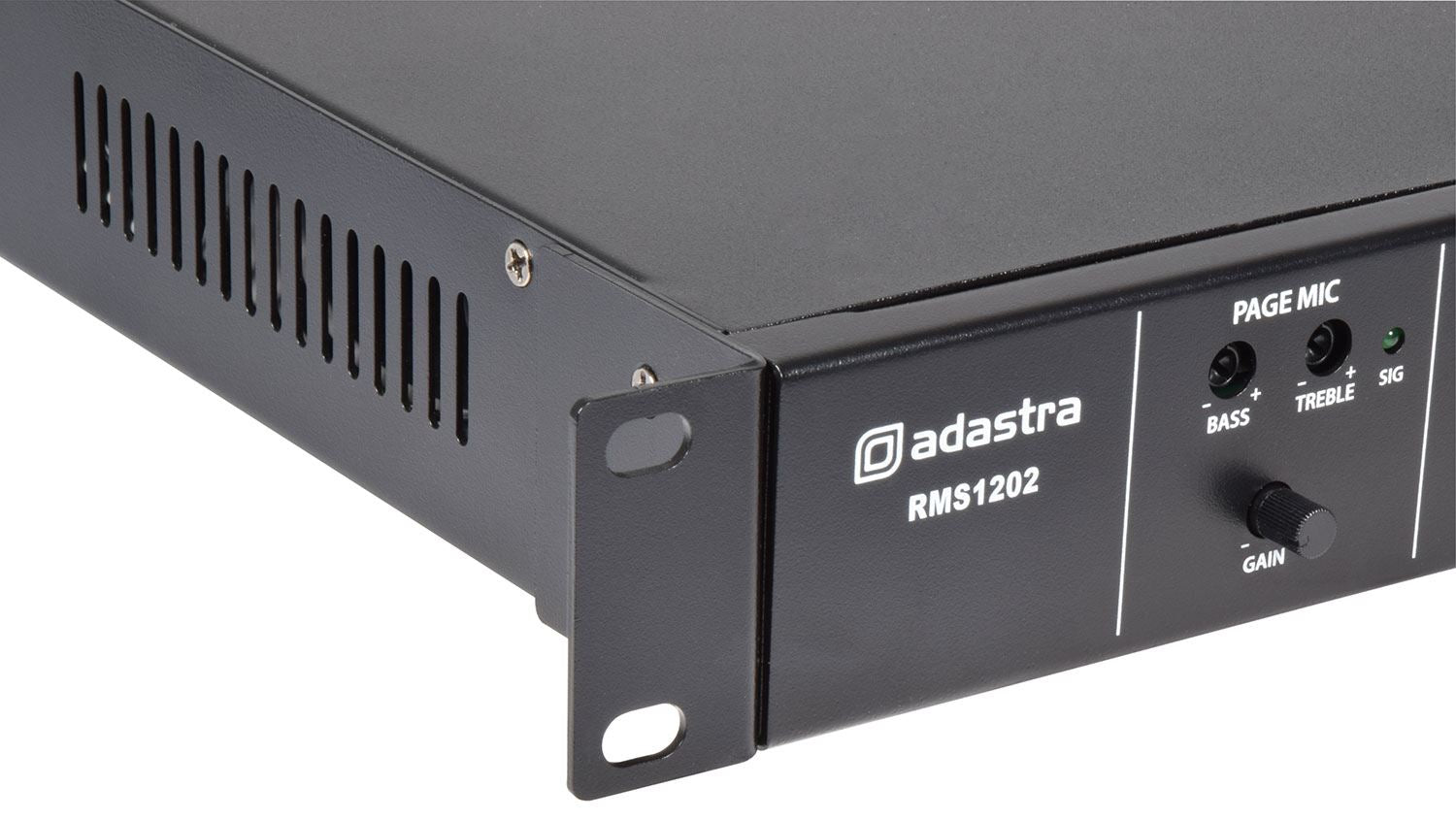

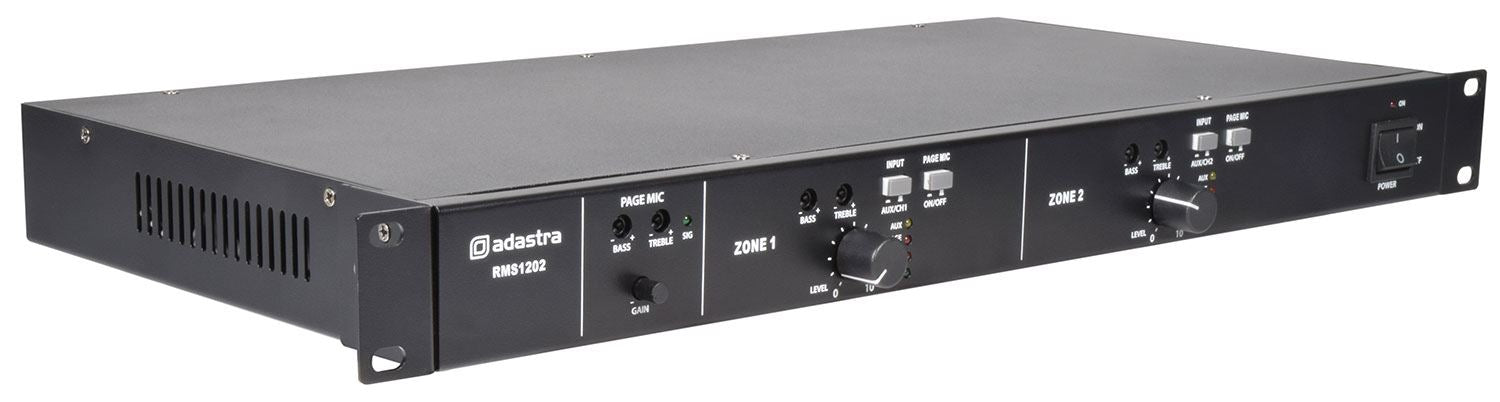

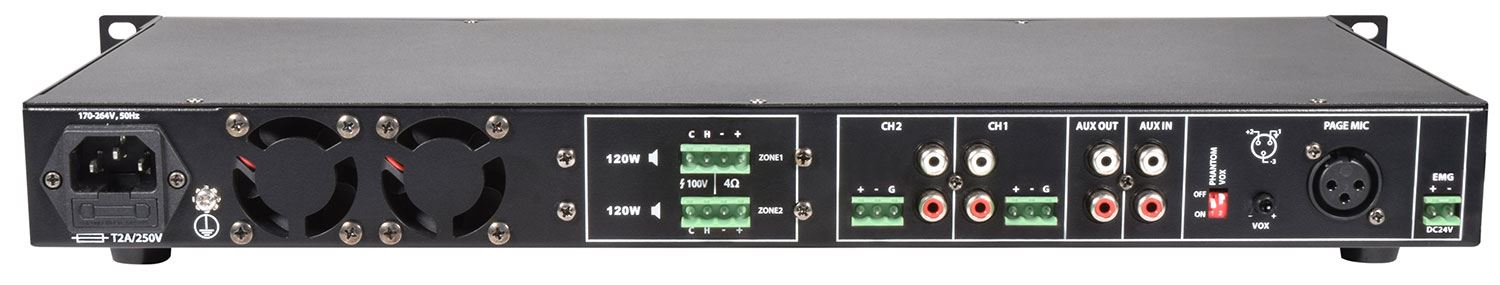

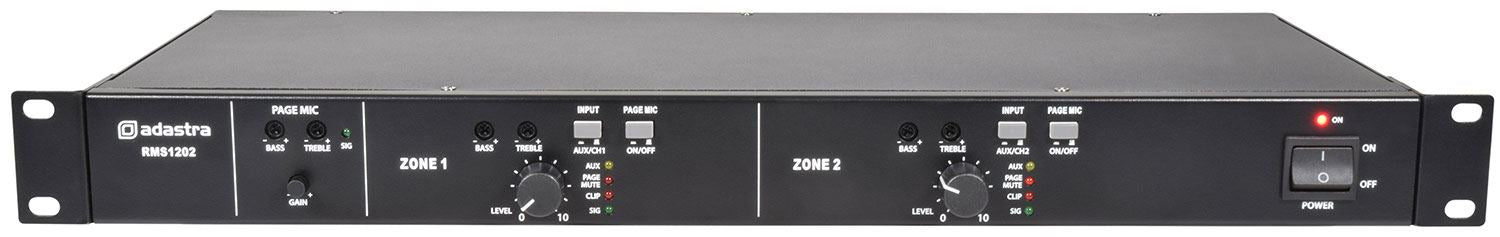

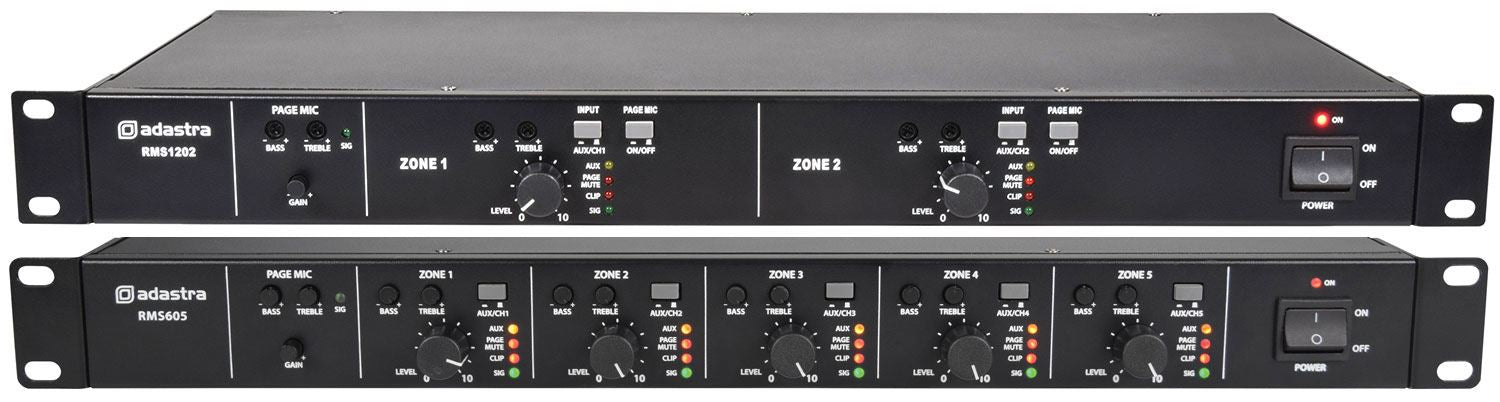

Adastra RMS1202 Mulit Channel Slave Amplifier 100V - 2 x 120W
Regular price
£293.02
