RS Series 100V Line Slave Amplifiers

High power class-D 100V line slave amplifiers in a rack-mountable housing. Slave inputs accept standard line level audio from a mixer or RM series mixer amplifier. Slave outputs can be cascaded onto further RS slaves to build larger systems. All line level inputs are connectable via RCA sockets or hard-wired via removable screw terminals. A further removable screw terminal is provided for 100V input, which enables the RS series slave amplifier to extend an existing 100V installation by connecting directly to the 100V speaker feed, or indeed from a long distance 100V feed using standard double-insulated cable. A 24V terminal is provided for connection to a security or alert panel to mute the output if required during alarm triggering. Speaker outputs are either 100V or low impedance (switchable on RS121 and RS241) which is stable down to 2 Ohms, enabling multiple low impedance speakers to be connected if preferred. Designed to power medium to large installations from a mixer output or to expand existing systems.

Details

19" Rack-mountable 1U (120W, 240W) or 2U (360W, 480W)
Efficient and lightweight Class-D amplifiers

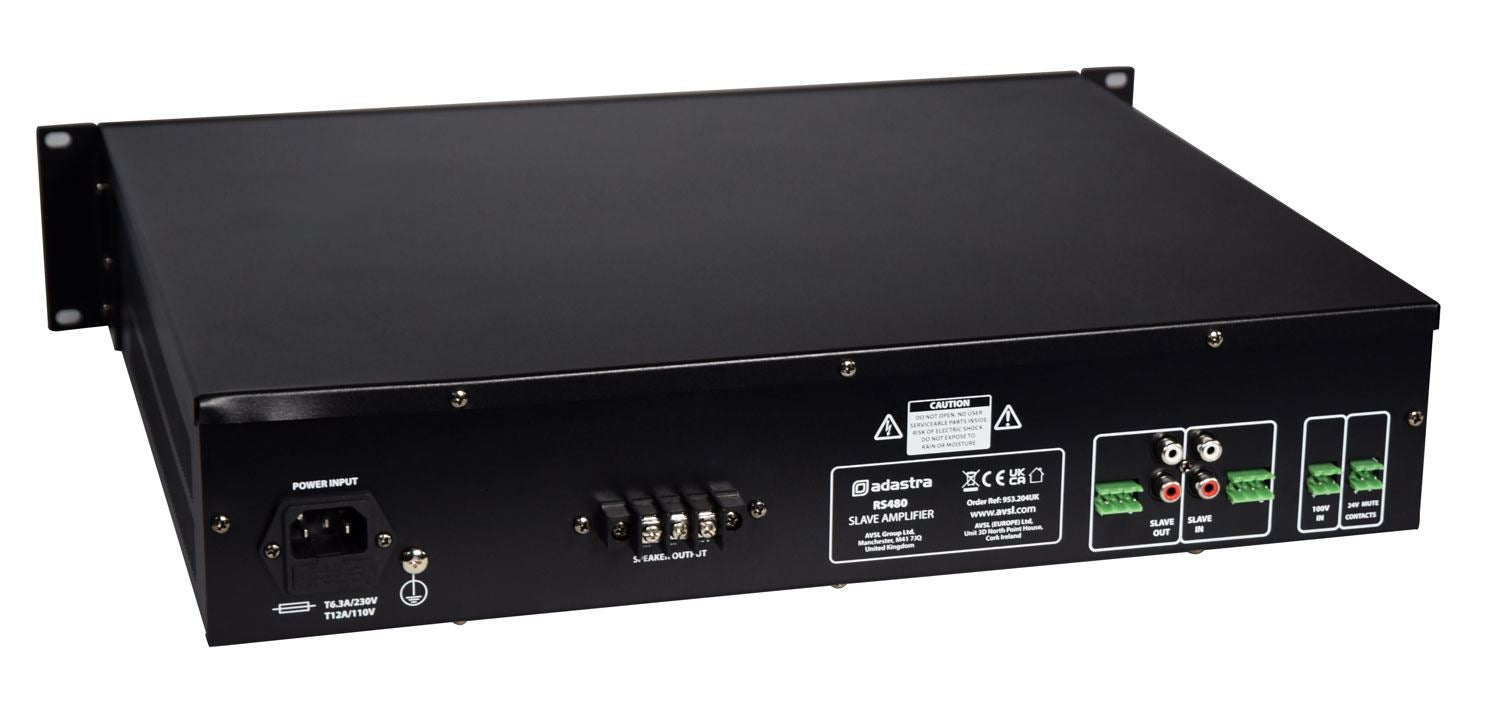

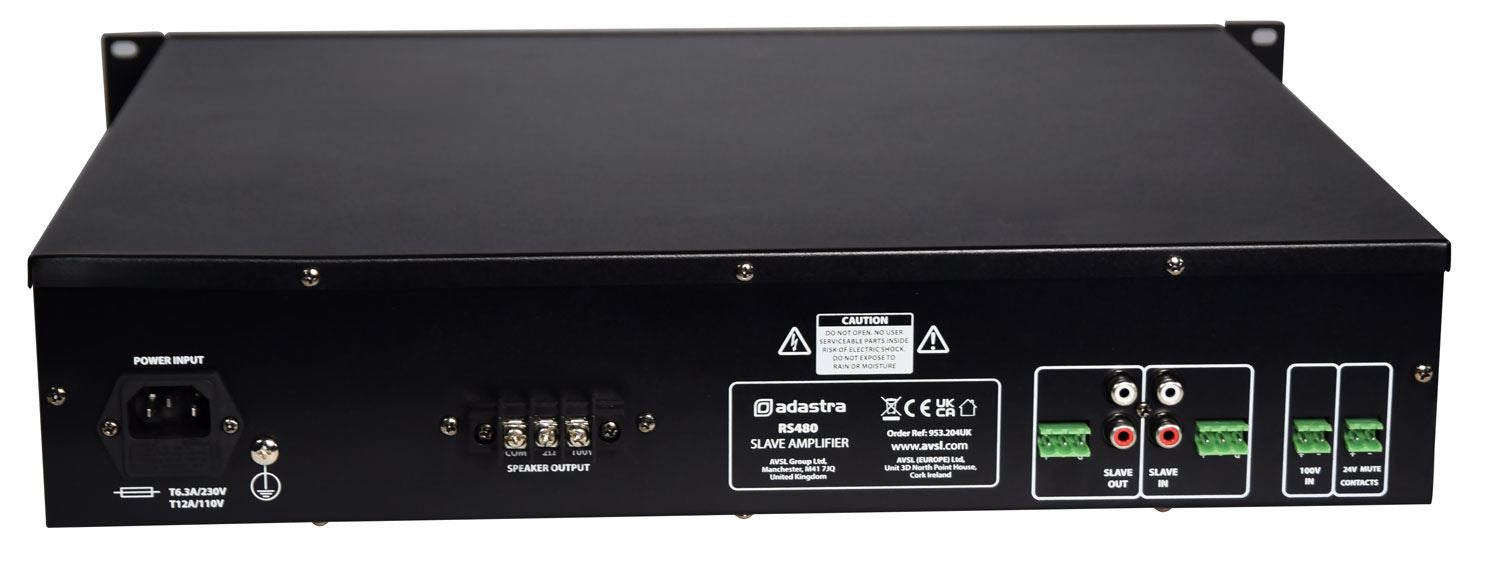

Line in and out on RCA or Euroblock terminals
24V mute contacts for alarm panel muting
100V signal input for extending existing speaker runs

Specifications

Power supply 175-264Vac 50Hz (IEC)
Input signal Slave line in (RCA/screw terminal), 100V in (screw terminal)
Output : signal Slave line out (RCA/screw terminal)
Outputs : speaker 100V or 2 Ohms min. (screw terminals)

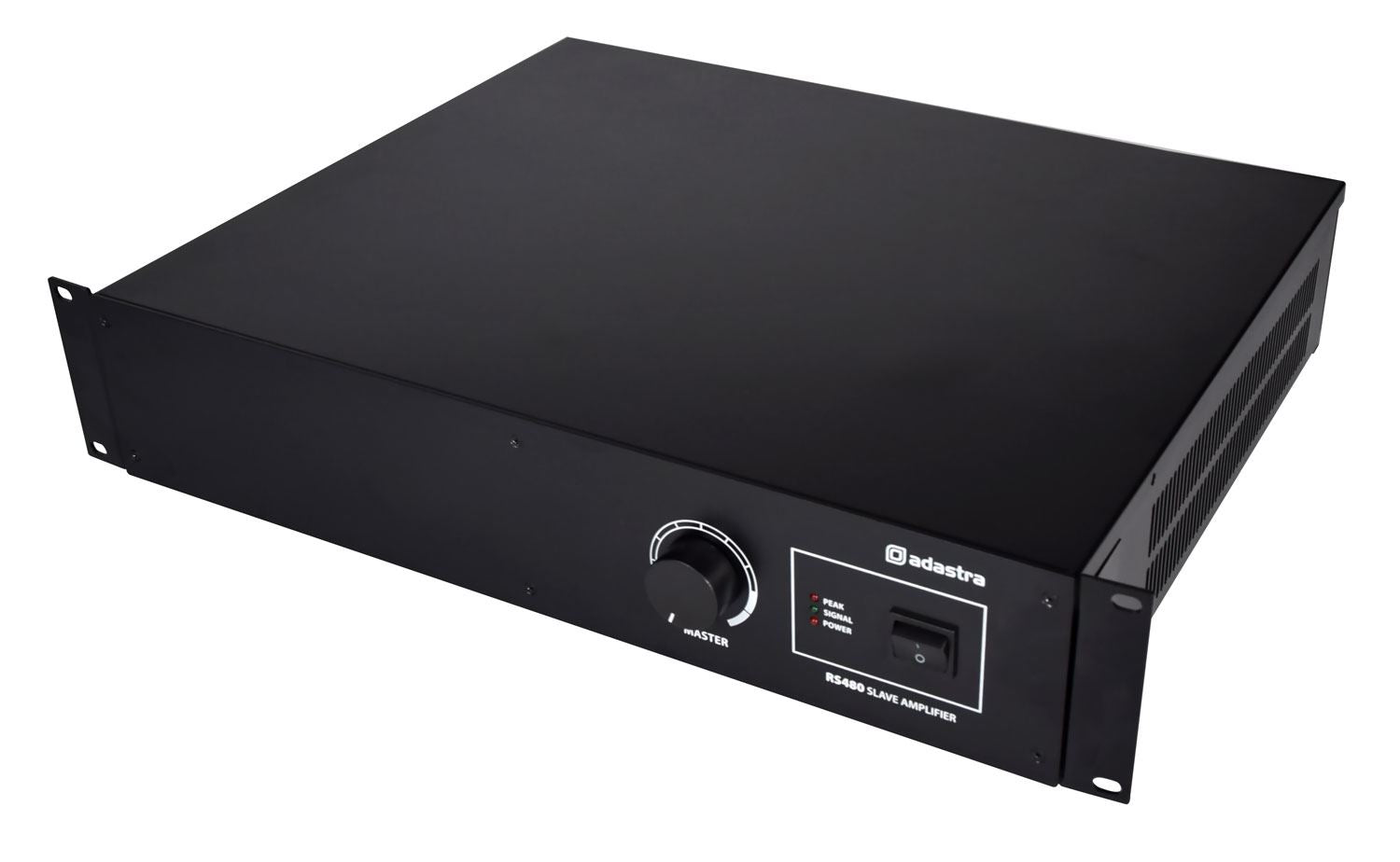

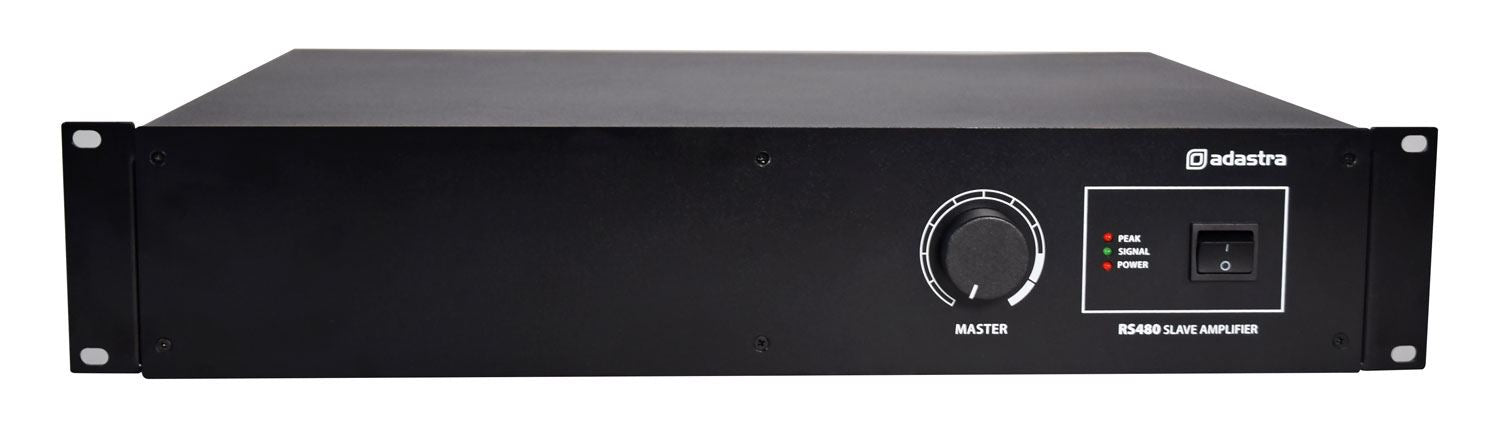

Controls Master volume
THD <1.0%<br>Mute 24V alarm contacts (screw terminal)
