Ex-Pro® AV-Pro 5 Port HDMI IR Remote Switch- 5x1 (5 way input 1 output) - 1080p Full HD - v1.4 3D Support - HDMI Switcher

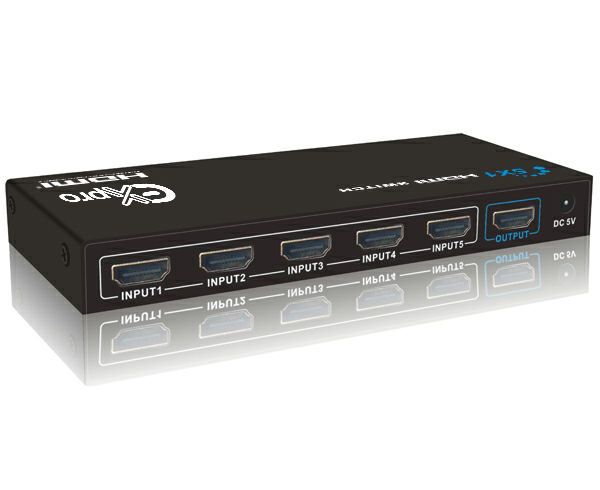

Ex-Pro® AV-Pro 5 Port HDMI IR Remote Switch- 5x1 (5 way input 1 output) - 1080p Full HD - v1.3b 3D Support - HDMI Switcher. The Ex-Pro 5x1 3D HDMI Switch routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the five sources to one HDTV HDMI Port. Five inputs accommodate the simultaneous connection of up to five HDMI sources and are switched easily by the IR remote within the package. System is fully 3D compatible and will support HDCP connection (Including Sky+HD). Supports Cable Transmission lengths upto 10 meters by 28 AWG HDMI cable, 15 meters by 26 AWG HDMI cable. HDMI Switcher 5 Ports in, 1 Port out. AC UK Power supply 3 Pin CE Approved x1. 1 x IR Remote Control. 1 x Manual Ex-Pro® AV-Pro 5 Port HDMI IR Remote Switch- 5x1 (5 way input 1 output) - 1080p Full HD - v1.4 3D Support - HDMI Switcher. Metal Body professional unit. Input Video Signal 0.5 -1.0 volts p-p, Input DDC Signal, 5 volts p-p (TTL), Max Single Link Range - 1920 x 1080 Supported HDMI Resolutions - 480i/576i/480p/576p/720p/1080i/1080P, 3D(1080P/24Hz). Supported DVI Resolutions 480p/576i/576p/720p/1080i/1080p XUVGA, Up to 1920×1200, HD Audio format, LPCM, Dolby-AC3, DTS7.1, Dolby True HD/DTS-HD master Audio, HD Video Format, Deep Color, Bandwidth Up to 225MHz Power supply DC 5V/1A Max. Power 1.0W. TMDS Voltage 1Vp-p, Resistance 75?. Supports Cable Transmission length 10 meters by 28 AWG HDMI cable, 15 meters by 26 AWG HDMI cable. UK Mains DC supplied. Powered unit. Ex-Pro 5 Year Warranty. Please note, we are aware of a small number of units with instructions referring to this unit as V1.3 (please note this unit is V1.4 spec not V1.3 as per the manual typo).
